Product Overview
Features

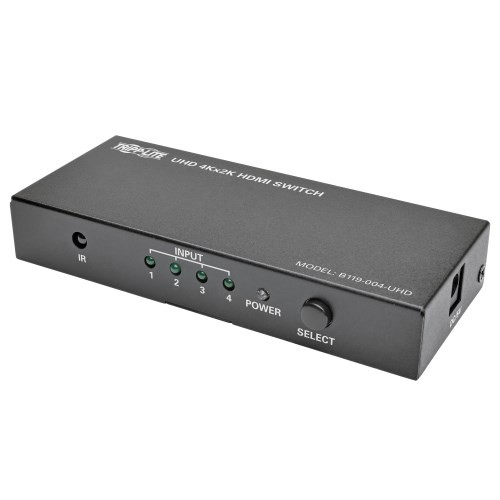

4-Port HDMI Switch with Remote Connects 4 Sources to One 4K HDMI Display
An excellent addition to your home theater, the B119-004-UHD allows you to connect four separate HDMI audio/video sources to your 4K television, projector or monitor’s HDMI input and switch between them. For instance, connect a cable box, Blu-ray player, Xbox and audio receiver to your 4K HDTV, and use the manual pushbutton or included remote control to switch manually from one input to another.
Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
This four-port HDMI switch supports Ultra HD 4K video resolutions at 60 Hz, as specified in HDMI 2.0, as well as 48-bit True Color and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. DTS-HD, Dolby TrueHD and 7.1-channel surround sound ensure your ears receive the same treat as your eyes.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The compact metal switch requires no extra software to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite’s P569-Series), and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. When the currently used source is powered off, the unit automatically switches to the next powered-on source.
System Requirements
- Up to 4 source devices with HDMI output
- Display device with HDMI input
Package Includes
- B119-004-UHD 4-Port HDMI Switch
- Remote control
- External power supply (Input: 100–240V, 50/60 Hz, 0.3A; Output: 5V 1A)
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332191342 |
| Technology | HDMI; IR |
VIDEO
| Max Supported Video Resolution | 4K @ 60Hz 4:4:4 |
| Max Supported Color Depth | 48-bit Deep Color |
| HDR Support | Yes |
| 3D Video Supported | Yes |
AUDIO
| Audio Specification | DTS-HD, Dolby TrueHD and 7.1 Channel Surround Sound |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Product Length (in.) | 4.84 |
| Product Length (ft.) | 0.4 |
POWER
| AC Adapter | Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A, 4 ft. |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.35A |
| External Power Supply Output Specs (V / A) | 5V / 2A |
| External Power Supply Cord Length (ft.) | 4 |
| External Power Supply Cord Length (m.) | 1.0 |
| DC Barrel Plug | OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 1.75 |
| External Power Supply Plug(s) | NEMA 1-15P North America |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Red (Power), Green (1, 2, 3, 4) |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| Rackmountable | No |
| Shipping Dimensions (hwd / in.) | 3.00 x 5.20 x 7.10 |
| Shipping Weight (lbs.) | 1.00 |
| Unit Dimensions (hwd / in.) | 0.8 x 4.8 x 2 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.33 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
| Storage Temperature Range | 14 to 176 °F (-10 to 80 °C) |
| BTUs | 6 BTU/Hr |
| Operating Humidity Range | 10% to 85 % RH, Non-Condensing |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
COMMUNICATIONS
| Port Control | Push Buttons |
| EDID Compatible | Yes |
| Consumer Electronics Control (CEC) Supported | Yes |
CONNECTIONS
| Number of Ports | 4 |
| Side A - Connector 1 | (4) HDMI (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
FEATURES & SPECIFICATIONS
| Port Selection | Pushbutton; Remote Selector |
| HDCP Specification | 2.2 |
| Driver Required | No |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
| External Power Supply Certifications | CE; ETL; UL |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
