HDMI Matrix Switch for Digital Signage or Other Applications with Multiple Video Displays

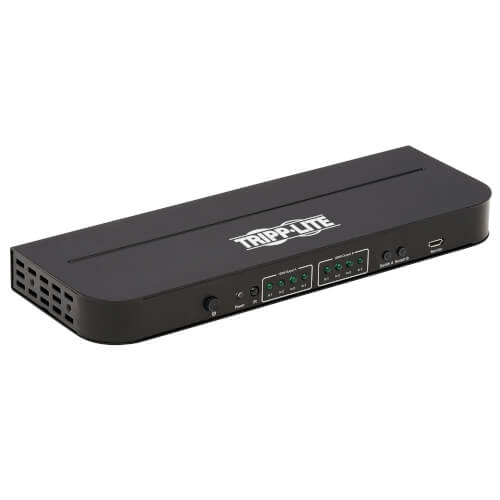

This matrix switch/splitter features four HDMI inputs and two HDMI outputs. This allows you to connect as many as four high-definition video sources, such as Blu-ray players, video game systems, Roku boxes, laptops, media servers or cable/satellite boxes, and transmit them to two high-definition televisions, projectors or monitors. The B118-2X4-4K-A is recommended for home theaters (transmit to HDTVs located in different rooms) or digital signage applications in classrooms, bars, restaurants, conference rooms, lecture halls and trade shows.
Enjoy Great Flexibility in Transmitting Video to Different Displays or Even Different Rooms
Send the same video image to both displays or transmit different videos and rotate among them. You can use the buttons built into the front of the unit to switch between the connected sources displayed on the two monitors. The B118-2X4-4K-A also includes an IR remote that lets you not only choose between the connected video sources, but also mute the sound and power on/off the unit.
Transmits Crystal-Clear 4K HDMI Video with 4:4:4 Color
The B118-2X4-4K-A supports Ultra HD video resolutions up to 4K x 2K at 60 Hz, as specified in HDMI 2.0, with 36-bit Deep Color. It’s capable of carrying HDR (high dynamic range) signals, which provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Built-In Audio Extractor Lets You Control Sound, as Well as Picture
TOSLINK/coaxial and RCA right/left audio ports allow you to connect an amplifier, receiver or soundbar for optical, digital or analog sound. The B118-2X4-4K-A supports 7.1-channel LPCM, DTS-HD Master Audio and Dolby TrueHD.
Plug-and-Play Operation for Quick Setup and Immediate Use
The B118-2X4-4K-A works right out of the box with no software required. Use HDMI cabling (such as Tripp Lite’s P569-Series high-speed cables, sold separately) to connect up to four sources and two displays. The included power supply comes with four international plug adapters (North America, Europe, United Kingdom, Australia).
System Requirements
- Source devices with HDMI output (media server, Blu-ray player, satellite/cable box)
- Display devices with HDMI input (HDTV, projector, monitor)
Package Includes
- B118-2X4-4K-A 2x4 HDMI Matrix Switch/Splitter
- IR remote control with battery
- External power supply (Input: 100–240V @ 50/60 Hz, 0.3A; Output: 5V 1A)
- (4) International plug adapters (North America, Europe, U.K., Australia)
- Mounting Hardware
- Owner’s Manual
Specifications
OVERVIEW
| UPC Code | 037332250605 |
| Technology | HDMI; IR; Toslink/SPDIF |
VIDEO
| Max Supported Video Resolution | 4K @ 60Hz (4096 x 2160) |
| Max Supported Color Depth | 36-bit Deep Color |
| HDR Support | Yes |
| Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
AUDIO
| Audio Specification | 7.1/5.1/2 LPCM Channel Surround Sound |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Bus Powered | Yes |
| Product Length (ft.) | 8.46 |
| Product Length (m.) | 0.71 |
POWER
| AC Adapter | Input: 100-240V, 50/60Hz, 0.3A; Output: 5V, 1A, 5 ft. |
| External Power Supply Input Specs (V / Hz / A) | 100-240V~50/60Hz, 0.3A |
| External Power Supply Output Specs (V / A) | 5V/1A |
| External Power Supply Cord Length (ft.) | 5 |
| External Power Supply Cord Length (m.) | 1.5 |
| DC Barrel Plug | OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve |
| External Power Supply Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Red (Power), (x8) Green (Connection) |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| Rackmountable | Yes |
| Shipping Dimensions (hwd / in.) | 2.36 x 10.04 x 9.25 |
| Shipping Weight (lbs.) | 0.88 |
| Unit Dimensions (hwd / in.) | 0.83 x 8.46 x 2.95 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.82 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 113°F (0 to 45°C) |
| Storage Temperature Range | 14 to 176°F (-10 to 80°C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
COMMUNICATIONS
| Port Control | Push Buttons |
| EDID Compatible | No |
CONNECTIONS
| Number of Ports | 4 |
| Side A - Connector 1 | (4) HDMI (FEMALE) |
| Side A - Connector 2 | MICRO-USB B (FEMALE) |
| Side B - Connector 1 | (2) HDMI (FEMALE) |
| Side B - Connector 2 | STEREO RCA (2xRCA) (RW) |
FEATURES & SPECIFICATIONS
| Port Selection | Pushbutton; Remote Selector |
| HDCP Specification | 2.2 |
| Driver Required | No |
| DIN Mountable | No |
| Integrated/Removable Cable | No |
| Multi-Resolution Support | No |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
| External Power Supply Certifications | CE; GS; TUV; UL; cUL |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
