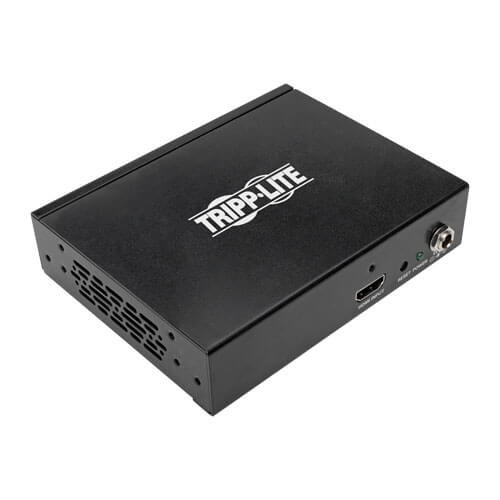

Tripp-Lite B118-004-UHD-2 4-Port 3D HDMI Splitter

Tripp-Lite B118-004-UHD-2 4-Port 3D HDMI Splitter

$162.99
SKU:
B118-004-UHD-2
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Transmits a 4K HDMI A/V Signal to 4 HDMI Displays Simultaneously
  • Recommended for 4K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
  • Distributes A/V signals up to 15 ft. (4.6 m) when used with standard 28 AWG HDMI cable
  • Supports UHD resolutions up to 4K @ 60 Hz for crystal-clear video
  • Supports HDCP 2.2 and EDID compliant to ensure compatibility with latest A/V hardware
  • Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 64
Supports the Most Up-To-Date Features and Formats
  • Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
  • Full 3D
  • DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
  • 36-bit Deep Color (12 bits per channel)
  • Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
  • Lip sync pass-through, xvYCC and x.vColor
Easy to Use Almost Anywhere
  • Plug-and-play operation with no software required for easy, immediate installation
  • Supports desktop use or wall-mounting using included hardware
  • Power supply includes international plug adapters (North America, Europe, U.K. and Australia)
TAA-Compliant
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

  • B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
  • External power supply (Input: 100–240V, 50/60 Hz, 0.35A; Output: 5V 2A)
  • International plug adapters (North America, Europe, U.K. and Australia)
  • Mounting hardware
  • Owner’s manual
TAA compliant RoHS compliant

Specifications

OVERVIEW
UPC Code 037332200655
Technology HDMI
VIDEO
Max Supported Video Resolution 4K @ 60Hz (3840 x 2160)
Max Supported Color Depth 36-bit Deep Color
HDR Support Yes
3D Video Supported Yes
AUDIO
Audio Specification DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound
INPUT
Voltage Compatibility (VAC) 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Product Length (in.) 5.039
Product Length (ft.) 0.419
POWER
AC Adapter Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A, 4 ft
External Power Supply Input Specs (V / Hz / A) 100-240V, 50/60HZ, 0.35A
External Power Supply Output Specs (V / A) 5V / 2A
External Power Supply Cord Length (ft.) 4.0
External Power Supply Cord Length (m.) 1.2
DC Barrel Plug OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
External Power Supply Plug(s) NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
USER INTERFACE, ALERTS & CONTROLS
LED Indicators Green (Power), (x2) Orange (Signal)
PHYSICAL
Material of Construction Metal
Color Black
Included Mounting Accessories Yes
Rackmountable Yes
Shipping Dimensions (hwd / in.) 2.17 x 8.43 x 6.46
Shipping Weight (lbs.) 1.39
Unit Dimensions (hwd / in.) 2.16 x 6.45 x 8.42
Unit Packaging Type Box
Unit Weight (lbs.) 0.198
ENVIRONMENTAL
Operating Temperature Range 32 to 104 °F (0 to 40 °C)
Storage Temperature Range 5 to 122 °F (-15 to 50 °C)
Relative Humidity 0% to 85% RH, Non-Condensing
COMMUNICATIONS
EDID Compatible   Yes
CONNECTIONS
Number of Ports 4
Side A - Connector 1 HDMI (FEMALE)
Side B - Connector 1 (4) HDMI (FEMALE)
Connector Plating Nickel
FEATURES & SPECIFICATIONS
HDCP Specification 2.2
Driver Required No
STANDARDS & COMPLIANCE
Certifications FCC, CE, ROHS
External Power Supply Certifications CE; FCC; UL; cUL; TUV; CCC; PSE; C-Tick; GS; RoHS
WARRANTY
Product Warranty Period (Worldwide) 3-year limited warranty
