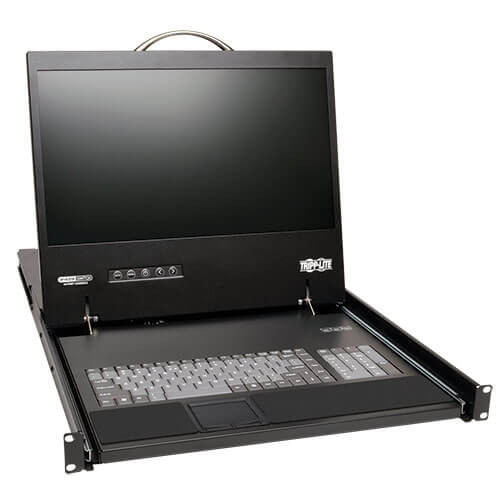

Tripp-Lite B070-008-19-IP NetCommander 8-Port Cat5 KVM over IP Switch

Write a Review
$2,142.86
SKU:
B070-008-19-IP
Shipping:
Calculated at Checkout
Product Type:
Rack Consoles

Product Overview

Overview

Tripp Lite’s B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.

The B070-008-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19“ LCD screen supports video resolutions up to 1366 x 768.

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-008-19-IP, or via searching NetCommander-AXS on www.tripplite.com

Features

Saves Space and Money
  • Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
  • Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000
  • Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
  • Use Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
  • For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room
  • Remote access means there’s no need to travel to the server room or network closet
  • Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
  • A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
  • 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
  • Supports both IPv4 and IPv6
  • Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface

Simplifies IT Tasks
  • On-screen display, hot keys and remote toolbar for easy use
  • 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
  • Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
  • Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
  • Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
  • System-sent messages to SNMP server notify you of LAN failures
  • Supports RADIUS and LDAP/S authentication
  • Log tracks events on your installation

Large 19” LCD
  • Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
  • DDC emulation allows for optimal output to LCD

Advanced Security Features
  • Multi-level password protection: create administrator accounts with full access and user accounts with limited access
  • Supports TLS 1.2 security protocol
  • You can install SSL certificates to ensure secure transactions between web servers and browsers

Expandability and Long-Lasting Reliability
  • Flash-upgradeable firmware over the network
  • Heavy-duty steel housing stands up to use

TAA Compliant
  • Complies with the Federal Trade Agreements Act for GSA Schedule purchases

System Requirements

  • Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
  • User-supplied Cat 5e/6/6a cabling
  • B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server
  • For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
  • Compatible with Windows and Linux operating systems
  • Remote access supported using Windows computers
  • Remote console computers require minimum Pentium 4 with 2 GB memory
  • Power consumption: 120V, 60Hz, 30W

Package Includes

  • B070-008-19-IP 1U rackmount console KVM switch with 19” LCD
  • C13 to 5-15P power cord
  • Rackmount hardware
  • CD with owner's manual
  • Quick start guide
TAA compliant RoHS compliant

Specifications

OVERVIEW
UPC Code 037332181879
Console Yes
Technology Cat5/5e; PS/2; VGA/SVGA
VIDEO
Max Supported Video Resolution Console: 1366 x 768 @60Hz; Remote: 1920 x 1080 @60Hz
INPUT
Voltage Compatibility (VAC) 100; 110; 120; 127; 200; 208; 220; 230; 240
Input Frequency 50/60Hz
Input Current 120V (1.2A) / 230V (0.7A)
Power Input Receptacle IEC-320-C14
USER INTERFACE, ALERTS & CONTROLS
LED Indicators Green (CAPS LOCK, SCROLL LOCK, NUM LOCK)
PHYSICAL
Color Black
Material of Construction Steel (Steel, Electrogalvanized, Cold Rolled, Coil)
Rackmountable Yes
Shipping Dimensions (hwd / in.) 6.10 x 23.30 x 32.25
Shipping Weight (lbs.) 39.90
Unit Dimensions (hwd / in.) 1.7 x 17.4 x 28.4
Unit Packaging Type Box
Unit Weight (lbs.) 29.00
ENVIRONMENTAL
Storage Temperature Range -40 to 158 F (-40 to 70 C)
Relative Humidity 0% to 80% RH, Non-Condensing
Operating Temperature 32 to 104 F (0 to 40 C)
BTUs   (Line Mode) 102 BTU/Hr / (Standby Mode) 17.1 BTU/Hr
Power Consumption (Watts) 30
Power Consumption Detail (Line Mode) 30W / (Standby Mode) 5W
COMMUNICATIONS
IP Remote Access   Yes
Network Compatibility 100 Mbps (Fast Ethernet)
CONNECTIONS
Ports 8
PC/Server Connections PS/2; USB; VGA
Side A - Connector 1 (8) RJ45 (FEMALE)
Side B - Connector 1 (4) RJ45 (FEMALE)
Side B - Connector 2 (1) USB A (FEMALE)
Computer Keyboard and Mouse Interface PS/2; USB
Computer Monitor Interface VGA
Console Keyboard and Mouse Interface PS/2; USB
FEATURES & SPECIFICATIONS
Autoscan (Y,N)   N
Number of Users 2
NIAP-Certified Secure   No
On-Screen Display (OSD) Yes
Port Selection Pushbutton; Hotkey; OSD
USB Specification USB 2.0 (up to 480 Mbps)
Authentication Supported RADIUS; LDAPS
Cat5 KVM Switch Yes
Recommended Category Cable Cat5e/6/6a Cables
BUILT-IN CONSOLE
Console Screen Size (inches) 19
Console Screen Aspect Ratio 16:9
REMOTE ACCESS
Virtual Media Speed   Up to 12 Mbps (using B078-101-USB2)
STANDARDS & COMPLIANCE
Certifications Tested to UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) 1-year limited warranty
