Product Overview
Features
Saves Space and Money
Simplifies IT Tasks
Large 19” LCD
Multi-Level Password Security
Expandability and Long-Lasting Reliability
TAA Compliant

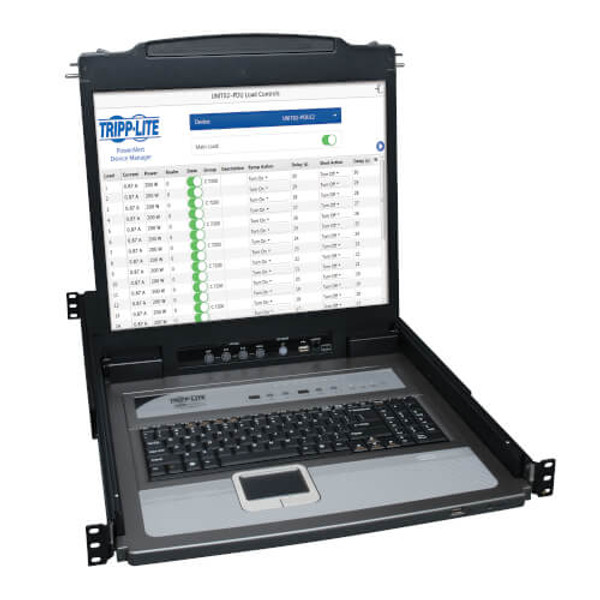

- Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer
- Mounts into 19”-wide rack, 26”-38” deep
- Control up to 8 computers/servers from one easily accessible console – ideal when rack space is at a premium
- Includes eight P778-Series cables that support computers with either PS/2 or USB connections
- Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
- Eliminates need to buy separate monitors, keyboards and mice for each computer/server
Simplifies IT Tasks
- Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
- Hot pluggable; add or remove computers without having to power down the switch
- Auto-scan mode automatically sequences through all active ports that are accessible to the user
Large 19” LCD
- Extra-wide display makes multitasking easier
- Supports video resolutions up to 1280 x 1024
- DDC emulation allows optimal output to LCD
Multi-Level Password Security
- Enhances security by limiting access to administrator and up to 4 local users
- Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed
Expandability and Long-Lasting Reliability
- Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
- A console cable kit is included for connecting the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit
- An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral with all the connected servers
- Compatible with all major operating systems for easy integration into your existing structure
- Firmware is upgradable with included cable and utility
- Heavy-duty steel housing stands up to frequent use
TAA Compliant
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
System Requirements
- Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
- P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
- Compatible with all major operating systems
- Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W
Package Includes
- B020-U08-19KTAA 1U rackmount console KVM switch with 19” LCD
- (x8) P778-006 6-ft. (1.83 m) USB/PS2 combo KVM cable kits
- USB/PS2 combo console cable kit
- RJ11 to DB9 firmware upgrade cable
- C13 to 5-15P power cord
- Grounding wire
- Rackmount hardware
- CD with owner's manual
- Quick start guide
Specifications
OVERVIEW
| UPC Code | 037332158048 |
| Console | Yes |
| Max CPU | 8 |
| Technology | PS/2; VGA/SVGA |
INPUT
| Nominal Input Voltage(s) Supported | 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
| Input Frequency | 50/60Hz |
| Input Current | 120V (0.8A) / 230V (0.4A) |
POWER
| Power Consumption (Watts) | 28.50 |
| Power Consumption Detail | (28.5W at 120V, 60Hz) / (29.1W at 230V, 50Hz) |
PHYSICAL
| Color | Black |
| Cable Jacket Color | Black |
| Included Mounting Accessories | Yes |
| LCD Monitor (in.) | 19 |
| Shipping Dimensions (hwd / in.) | 5.90 x 26.77 x 32.68 |
| Shipping Weight (lbs.) | 41.00 |
| Unit Dimensions (hwd / in.) | 1.75 x 17 x 27 |
| Unit Weight (lbs.) | 30.6 |
ENVIRONMENTAL
| Storage Temperature Range | -4 Degrees F to 140 degrees F (-20 to +60 C) |
| Relative Humidity | 0 to 80% RH, Non-condensing |
| Operating Temperature | 32 Degrees F to 120 Degrees F (0 to 50 C) |
COMMUNICATIONS
| Port Control | Push Buttons, Hotkeys, OSD |
| IP Remote Access | No |
CONNECTIONS
| Number of Ports | 8 |
| Computer/Server Ports | (x8) HD18 (Female) |
| Firmware Upgrade Port | RJ45 Female |
| PC/Server Connections | PS/2; USB; VGA |
| Included Cable (Side A) - Connector 1 | HD18 Male |
| Included Cable (Side B) - Connector 2 | PS/2 Male |
| Included Cable (Side B) - Connector 3 | PS/2 Male |
| Included Cable (Side B) - Connector 4 | USB A Male |
FEATURES & SPECIFICATIONS
| Autoscan (Y,N) | Y |
| Number of Users | 1 |
| NIAP-Certified Secure | No |
| Cat5 KVM Switch | No |
STANDARDS & COMPLIANCE
| Certifications | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Approvals | UL, cUL, CE, FCC, RoHS, TAA |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
