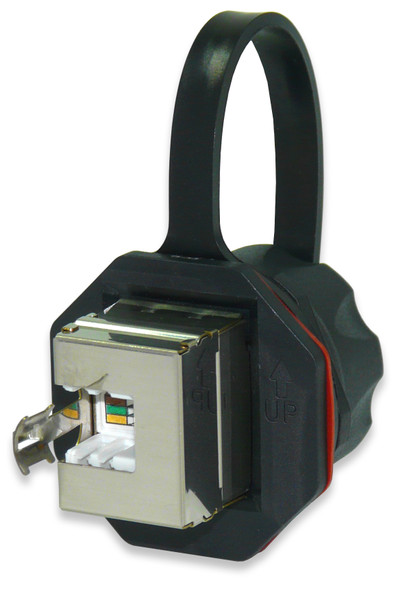

SignaMax KJS458IG-C6C Cat 6 FTP Industrial IP67 Jack, Protective Cap, T568A/B

DESCRIPTION

Category 6 Industrial Grade Jack with Protective Cap, T568A/B Wiring, IP67 Rated

Signamax industrial grade jacks provide the same high-level transmission performance as other Signamax twisted-pair connectors in-tended for regular commercial applications, but with a robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated jack housing design guarantees superb protection against liquid and solid agents’ penetration, against vibrations, and for a long-life reliable performance. Jacks are furnished with dust caps to prevent expo-sure of unmated connectors and are available in an unscreened (UTP) and screened (FTP) versions.

FEATURES

• Unique IP67-rated jack housing design
• Furnished with dust caps
• Available in an unscreened (UTP) and screened (FTP) versions
• Applications – factory floors, chemical, food processing plants
• T568A and T568B wiring with an easy-to-read color-code wiring label
• Termination with standard single-position 110 termination tool
• Rear 110-type contacts provide improved wire retention and ease of termination
• Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs
• Rated for at least 750 plug insertions
