Product Overview

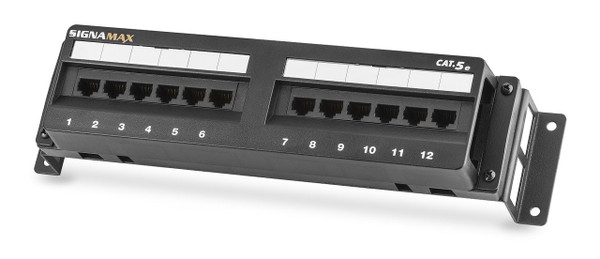

The Signamax Category 5e Unscreened Jack Patch Panels were designed to feature a removable front cover for easy access to the front-facing RJ-45 and 110 connectors. This front cover offers protection and access from any direction for the distribution cables via the knock-outs along the sides.
There are several options in this series. An option with standoff legs for routing cables behind the panel and another for DIN-Rail mounting. All options are available in 6 or 12 port versions featuring a clear hinged window for port identification and a fully enclosed PCB design providing flexibility and protection for the printed circuitry during termination. The unique socket contact design allows enhanced plug-to-jack connection integrity for the highest level of system reliability.
- Exceeds ANSI/TIA-568-C.2 component performance specifications
- Supports TIA-568-C.2 category 5e 100 meter channel performance
- Front access to the modular sockets & 110 connectors
- Accessible from any direction for distribution cables
- Integrated for optional 89D-type mounting brackets
- Port designation features along each port for quick identification
- Easy-to-read T568A/B wiring scheme color-coded label
- Compatible with standard one-position & four-position 110-type tools
