Description
Product Description:

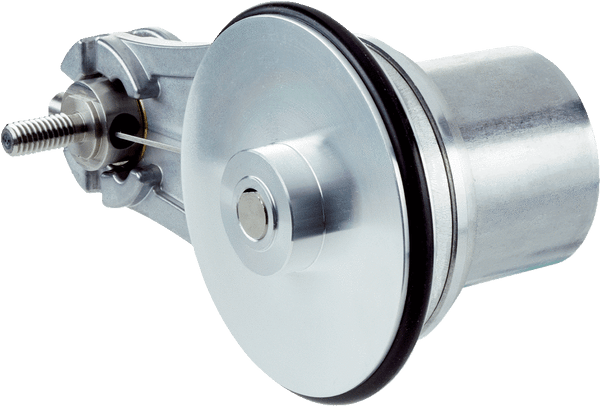

The DBV50 Core measuring wheel encoder is a measuring wheel system for measuring linear movements. It consists of the DBS50 Core incremental encoder, an aluminum measuring wheel with a 200 mm diameter and a spring-loaded arm. The maximum resolution is 0.08 mm per pulse.
The spring arm has a maximum spring travel of 14 mm, a maximum spring force of 20 N and features a convenient pretension setting for repeatably setting the spring pretension. A spring travel limiter protects the spring from being overloaded.
The encoder can be rotated and mounted on both sides of the spring arm; routing of the cable can be adapted to the application. The measuring wheel system can be delivered with numerous electrical interfaces, facilities for connecting and resolutions.
- Axis distance: 63.5 mm
- Measuring wheel circumference: 200 mm
- Resolution: 0.08 mm per pulse, 12.5 pulses per mm
- Max. spring travel: 14 mm, mechanically limited, max. spring force: 21 N
- Encoder rotation in 30° increments
- The encoder can be mounted on both spring arm sides, wheel support from top and bottom
- Adjustable spring pretension
Your Benefits:
- Compact, space-saving measuring wheel system with low installation depth
- Large spring travel and high press-on force to compensate for unevenness in the surface being measured
- Easy and repeatable setting of the spring pretension
- Prevents system failures by limiting the spring travel to protect the spring from being overloaded
- Highly adaptable to various applications thanks to a variety of options for mounting the encoder on the spring arm
- Reliable operation thanks to the reliable encoder with a high radial load
- Numerous electrical interfaces, facilities for connecting and resolutions
Fields of applications:
- Measuring of position, speed and distance in applications with linear movements in storage logistics and mechanical engineering.
- Conveyor belts
- Wood industry
- Laser and inkjet printers for labels, packaging and bottles
- Shuttle systems in storage logistics
- Volume measurement and weighing systems
- Packaging machines
