DESCRIPTION

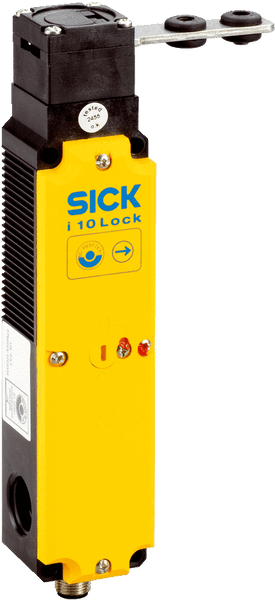

The i10 Lock safety locking device is used for keeping guards safely locked until a hazardous area can be entered. The locking device features a narrow design that enables easy mounting directly on the guard framework. Different switching elements and actuators make it both mechanically and electrically flexible. As a result, this safety switch can be adapted to nearly any application.
Tried-and-proven electro-mechanical safety locking device with door monitoring
FEATURES
- Narrow plastic housing
- Rigid or mobile actuators
- Available with M20 X 1.5 cable entry glands or Flexi Loop-compatible M12 plug connector (depending on variant)
- Power to lock or power to release variants
- Lock and door monitoring
- IP 67 enclosure rating
BENEFITS
- Small design simplifies installation and makes it easy to mount directly on the guard door frame
- Flexible electrical connectivity due to three cable entry glands
- Improved diagnostics due to additional signaling contacts
- Practical, simple adjustment due to various actuators that are suitable for any door
- Different switching elements offer the appropriate solution for electrical installation
- Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort.
