Product Overview
DESCRIPTION
The Dx35 family of distance sensors, based on HDDM™ technology, combine maximum reliability, measuring capabilities, flexibility and the perfect price-performance ratio in a very compact housing.Depending on the application, sub-product families are available for distance measurement on natural objects (DT35 and DS35) or on reflective tape (DL35 and DR35).The sub-product families also come with different interfaces. In addition to the IO-Link function, which all the devices have, the product family also offers sensors with analog and switching output (DT and DL) or the option of two switching outputs (DS and DR).Its final distinguishing feature when selecting the right sensor for the application is the light sender: infrared or red light in laser class 1 or 2.
The Dx35 can be used in a wide variety of applications across all industries. In storage and conveyor systems, for example, it provides reliable empty bay and fill level detection.
FEATURES
- Highest reliability, ambient light immunity and best price/performance ratio thanks to HDDM technology
- Measuring range of 0.05 m to 12 m for natural objects or 0.2 m to 35 m for reflective tape
- Devices with analog and digital output, or just switching
- Infrared or red emitted light in laser class 1 or 2
- Repeatability: 0.5 mm to 5 mm
- Compact housing size
- IO-Link

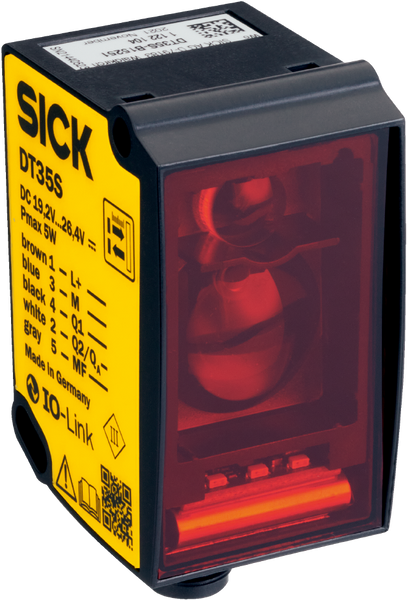

- DT35-S - Certified to ISO 13849 (PL b) and IEC 62998 (PC B)
BENEFITS
- Precise and reliable measurement irrespective of object color extends running times and process quality
- A compact size and blind zone make flexible mounting possible when space is limited
- Optimum solution thanks to flexible settings for speed, range and repeatability
- Flexible interface use: 4 mA to 20 mA, 0 V to 10 V, current sourcing output, current sinking output, or IO-Link – making machine integration simple
- With their straightforward alignment, optimal performance or inconspicuous measurement, versatile light senders make for an ideal solution in all scenarios
- Low investment costs and high performance levels guarantee a short return on investment
- IO-Link offers full process control, from commissioning through to service
- DT35-S - Certification up to performance level b allows versatile use for protecting persons and capital goods
