Description
Product Description:

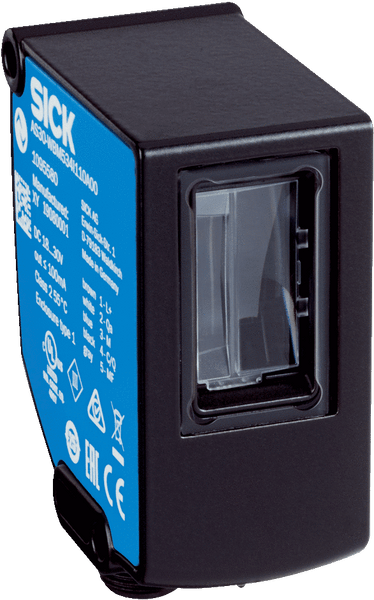

The AS30 array sensor operates on the proximity scanning principle. It detects even the slightest differences in grayscale values within the field-of-view. Positioning of, for example, a paper web based on the web edge or a contrast line is only one of many possible applications. Widths, diameters, and gaps can also be detected. In reflector mode, the AS30 can even detect transparent materials.
At a glance:
- Teach-in of selected edges possible
- Full color TFT display
- Various operating modes for different applications
- Core and Prime variant for different fields of application
- Large measuring range of up to 50 mm
- Sensing distance of 25 mm or 100 mm
- Repeatability of up to 30 µm
Your Benefits:
- Higher reliability and more stable processes thanks to teach-in of contrast edges
- TFT display for flexible configuration options and easy commissioning
- Various operating modes provide the right defaults for every application
- High repeatability of up to 30 µm
- No fine positioning of the sensor required thanks to the large field of view of up to 50 mm
- IO-Link and the SOPAS ET software ensure easy configuration
- Efficient communication and predictive maintenance through smart sensor functionality
- Printing industry: positioning of sheets
- Electronics and solar: edge guiding in battery production
- Packaging industry: edge guiding, tear string detection
- Machine construction: double layer detection, thickness measurement
- Furniture industry: edge guiding for wide-belt sanding machines
- Robotics: weld seam tracking
