Product Overview
Product description:

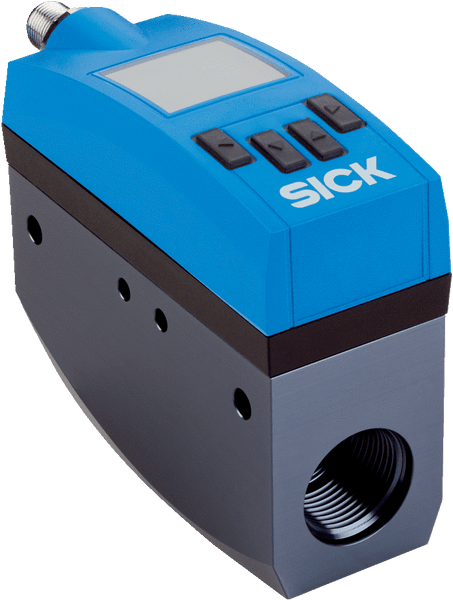

The FTMg energy consumption flow meter measures gas flow and temperature as well as the process pressure, making it a costsaving multi-talent. With high measurement dynamics and low pressure loss, it measures non-corrosive gases with extreme efficiency. The contrast-rich color display enables easy operation of the FTMg and allows for representation of several measured values as a process diagram. Internal data logging over seven days and integrated static evaluation help detect even the smallest leaks in a pneumatic system. PoE also enables simple web-based connection to a PC or a cloud to make energy consumption more transparent. All measurement data can be transmitted via IO-Link or with switching and analog signals.
At a glance:
- Measures compressed air and non-corrosive gases such as argon, helium, carbon dioxide and nitrogen
- Calorimetric measurement principle with a measurement accuracy of ± 3% M.V. and ± 0.3% M.E.V.
- Measurement of gas flow and temperature as well as process pressure and energy consumption with only one sensor
- Low pressure loss
- High measurement dynamics for cylinder and leakage monitoring
Your benefits:
- Transparent compressed air consumption measurement according to DIN EN 50001
- Complete overview of the flow, pressure and temperature of gases increases system reliability
- IO-Link or Ethernet interfaces (communication with OPC UA) for simple system integration and data availability
- Cost savings thanks to reduced energy consumption and increase in production efficiency
- Intuitive configuration with large, contrast-rich OLED display saves time and money during commissioning
- Only one installation and commissioning process for the collection of flow, pressure and temperature data
Fields of application:
- Consumption and leakage monitoring in compressed air systems
- Monitoring of the energy consumption of compressed air in the supply network
- Measurement of inert gases in packaging with modified atmospheres in the food and beverage industry
- Flow measurement of non-corrosive gases such as Ar, He, CO2, N2
