Description
Product Description:

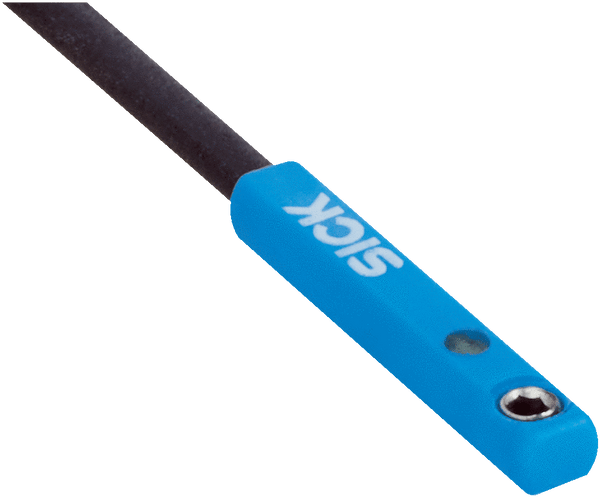

The MZC2 magnetic cylinder sensor detects the piston position in pneumatic grippers and pneumatic miniature cylinders. Thanks to its short design, the MZC2 is particularly well-suited for the C-slots of very small pneumatic actuators as used in handling and assembly, robotics or the electronics industry. The sensor is simply inserted into the C-slot and can be quickly and safely fastened to the cylinder. The sensor is fully recessed in the slot. Thanks to the choice of two housing variants, the MZC2 fits in a wide range of C-slots of various manufacturers.
At a glance:
- Short housing (19.5 mm) for use in pneumatic grippers and miniature cylinders
- Fits in all common C-slots, e.g. from SMC, Bimba, Schunk, Zimmer and Festo
- Short, precise switching point, ideal for applications with small stroke
- LED for indicating the output state
- IP67 enclosure rating
- Sensor is fully recessed in the slot
Your Benefits:
- Short housing saves installation space, thereby increasing system efficiency
- Short switching point optimized for gripper applications increases process efficiency due to higher PSDI times
- Thanks to the choice of two different housing variants, the sensor fits into all common C-slots, regardless of the cylinder profile or make.
- Quick and easy insertion of the sensor into the slot from above
- The rugged mounting holds the sensor in the required position, even when exposed to shock and vibration, and increases reliability
Fields of applications
- End position detection in pneumatic cylinders
- End position detection in pneumatic miniature cylinders
- Position detection (open/close) in pneumatic grippers
