Description
Product Description:

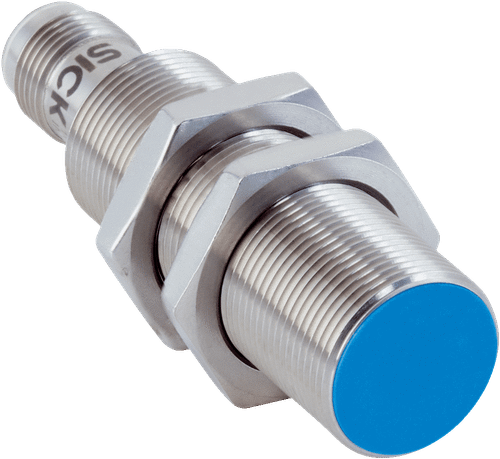

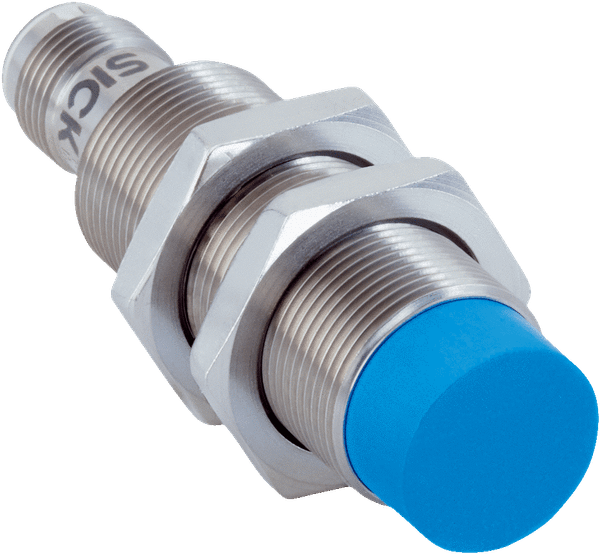

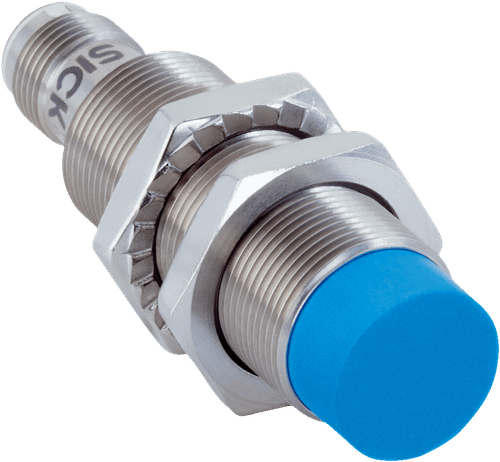

The IMS inductive proximity sensors combine tried-and-tested, rugged SICK mechanics with advanced electronics. With the E1 type approval by the German Federal Motor Transport Authority, the sensors are especially well-suited for use in mobile machines. The IMS products feature protection against load dump, electromagnetic compatibility and a large voltage range of 7.2 V to 60 V DC. Versions with connecting cables offer enough hold for mobile male connectors due to the oil-resistant material and a 0.5 mm² cross section of these cables. The ambient temperature range is from –40 °C to +100 °C, thereby enabling sensor function in any weather.
At a glance:
- Thread sizes: M12 to M30
- Large sensing ranges: 4 mm to 20 mm
- Electrical configuration: DC, 3-wire
- Enclosure rating: IP68, IP69K
- Ambient temperature: –40 °C to +100 °C
- Rugged stainless-steel housing; plastic sensing face
- Load dump protection and high electromagnetic compatibility of 100 V/m
- E1 type approval
Your Benefits:
- Maximum operating times due to rugged sensor technology, even in harsh environments that are subjected to severe weather conditions
- Stable and fault-free processes thanks to high electromagnetic compatibility and very precise detection
- Extensive portfolio with application-specific special variants
- Worldwide availability due to global SICK sales network and countless approvals
Fields of applications:
- Detection and positioning tasks in balers
- Monitoring of belt speed in harvesters
- Detection of ring mount position in excavators
- Monitoring of loading area position in dump trucks
- Detection of aerial ladder end position in fire trucks
- Positioning of drums in garbage trucks
- Detection tasks in aircraft tractors
