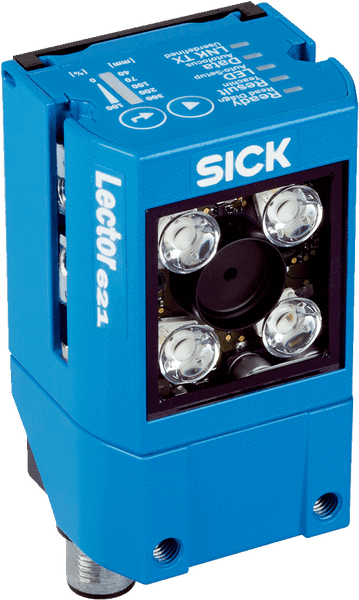

SICK 1085375 V2D621R-2MSFFB5 Image-based code readers, 12 V DC ... 24 V DC, ± 20 %

$5,074.00
SKU:
1085375
Shipping:
Calculated at Checkout
Product Type:
Image Based Readers
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

SICK 1085375 V2D621R-2MSFFB5 Image-based code readers.

Features

  • Variant: Complete device
  • Optical focus: Teach auto focus
  • Sensor: CMOS monochrome
  • Sensor resolution: 1,280 px x 1,024 px (1.3 MP)
  • Illumination: Integrated
  • Illumination color: Red, LED, Visible, 617 nm, ± 15 nm; Blue, LED, Visible, 470 nm, ± 15 nm
  • LED class: 1 (IEC 62471:2006-07, EN 62471:2008-09)
  • Feedback spot: LED, Visible, green, 525 nm, ± 15 nm
  • Alignment aid: Laser, Red, 630 nm ... 680 nm
  • Laser class: 1, Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in “Laser Notice No. 56” dated May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
  • Focal length: 17.1 mm
  • Scanning frequency: 50 Hz
  • Code resolution: 0.25 mm 1)
  • Working range: 300 mm ... 1,500 1)

1) For details see reading field diagram.

Mechanics/electronics

  • Connection type: 1 x M12, 17-pin male connector; 1 x M12, 4-pin Ethernet female connector; Circular plug-in connector
  • Supply voltage: 12 V DC ... 24 V DC, ± 20 %
  • Power consumption: Typ. 4 W
  • Housing material: Aluminum die cast
  • Housing color: Light blue (RAL 5012)
  • Window material: Plastic
  • Enclosure rating: IP65 (EN 60529, EN 60529/A2)
  • Protection class: III
  • Electrical safety: EN 62368
  • Weight (technical data): 170 g
  • Dimensions (L x W x H): 71 mm x 43 mm x 35.6 mm 1)
  • MTTFd: 270 years

1) Swivel connector is 17.8 mm longer.

Safety-related parameters

  • MTTFD: 270 years

Performance

  • Readable code structures: 1D codes, Stacked, 2D codes
  • Bar code types: GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes
  • 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
  • Code qualification: On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004
  • No. of codes per reading interval: 1 ... 50
  • No. of characters per reading interval: 500 (for multiplexer function in CAN operation)
  • Automated parameter switching: ✔

Interfaces

  • Ethernet: ✔ , TCP/IP
  • Function: Data interface (read result output), Service interface, FTP (image transmission)
  • Data transmission rate: 10/100 MBit/s
  • PROFINET: ✔
  • Function: PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
  • EtherNet/IP™: ✔
  • EtherCAT®: ✔
  • Type of fieldbus integration: Optional over external fieldbus module CDF600
  • Serial: ✔ , RS-232, RS-422
  • Function: Data interface (read result output), Service interface
  • Data transmission rate: 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
  • CAN: ✔
  • Function: SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
  • Data transmission rate: 20 kbit/s ... 1 Mbit/s
  • CANopen: ✔
  • PROFIBUS DP: ✔
  • Type of fieldbus integration: Optional over external fieldbus module CDF600-2
  • Digital inputs: 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDM420)
  • Digital outputs: 4 (“Result 1”, “Result 2”, 2 outputs via CMC and CDM420 or “Result 1”, “Result 2”, “Result 3”, “Result 4” when using the 17-wire cable with open cable end)
  • Reading pulse: Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode
  • Optical indicators: 16 LEDs (5 x status display, 10 x LED bar graph, 1 green feedback spot)
  • Acoustic indicators: Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
  • Control elements: 2 buttons (choose and start/stop functions)
  • Operator interfaces: Web server
  • Configuration software: SOPAS ET
  • Memory card: microSD memory card (flash card), optional
  • Data storage and retrieval: Image and data storage via microSD memory card and external FTP
  • EncoderFrequency: Max. 300 Hz
  • External illumination control: Via digital output (max. 24 V trigger)

Ambient data

  • Electromagnetic compatibility (EMC): EN 61000-6-2:2005-08 / EN 61000-6-4 (2007-01) + A1 (2011)
  • Vibration resistance: EN 60068-2-6:2008-02
  • Shock resistance: EN 60068-2-27:2009-05
  • Ambient operating temperature: 0 °C ... +50 °C
  • Storage temperature: –20 °C ... +70 °C
  • Relative humidity: 90 %, Non-condensing
  • Ambient light immunity: 2,000 lx, on code

Certificates

  • EU declaration of conformity: ✔
  • UK declaration of conformity: ✔
  • ACMA declaration of conformity: ✔
  • China RoHS: ✔
  • cULus certificate: ✔
  • KC Mark certificate: ✔
  • BIS registration: ✔
  • Information according to Art. 3 of Data Act (Regulation EU 2023/2854): ✔

Download SICK product specification sheet (PDF)
