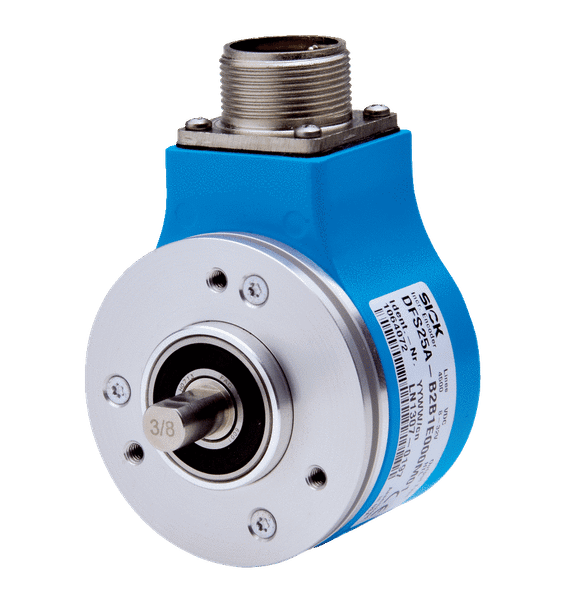

SICK 1069084 DFS25A-B2A1C001024 Incremental encoders.
Safety-related parameters
- MTTFD (mean time to dangerous failure): 330 years (EN ISO 13849-1) 1)
1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.
Performance
- Pulses per revolution: 1,024
- Measuring step: ± 90°, electric/pulses per revolution
- Measuring step deviation: ± 0.008° pulses 100 ... 10,000
- Error limits: ± 0.03°
Interfaces
- Communication interface: Incremental
- Communication Interface detail: TTL / RS-422
- Number of signal channels: 6-channel
- Initialization time: 40 ms 1)
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
1) Valid positional data can be read once this time has elapsed.
Electronics
- Connection type: Male connector, M12, 8-pin, radial 1)
- Supply voltage: 4.5 ... 5.5 V
- Reference signal, number: 1
- Reference signal, position: 180°, electric, gated with A
- Code sequence: Clockwise
- Reverse polarity protection: ✔
- Short-circuit protection of the outputs: ✔ 2)
1) The Zero-Set function is not available with 6-pin MS connector or M12 connector options.
2) Short-circuit opposite to another channel or GND permissable for maximum 30 s.
Mechanics
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 3/8″; With flat
- Shaft length: 19 mm
- Weight (technical data): + 0.4 kg 1)
- Shaft material: Stainless steel 1,4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial); 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 15 gcm²
- Bearing lifetime: 3.6 x 109 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
1) Based on encoder with MS male connector.
Ambient data
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529)
- Permissible relative humidity: 90 % (Condensation not permitted)
- Operating temperature range: –30 °C ... +85 °C
- Storage temperature range: –40 °C ... +100 °C, without package
- Resistance to shocks: 100 g, 11 ms (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
Certificates
- EU declaration of conformity: ✔
- UK declaration of conformity: ✔
- ACMA declaration of conformity: ✔
- China RoHS: ✔
- Information according to Art. 3 of Data Act (Regulation EU 2023/2854): ✔
