Product Overview
Product Description:

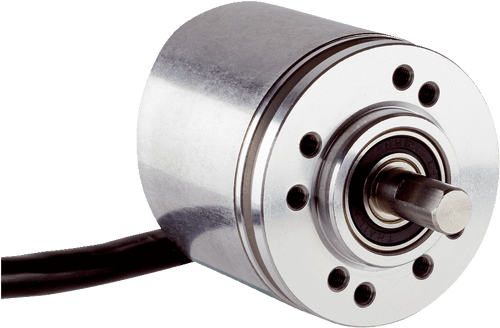

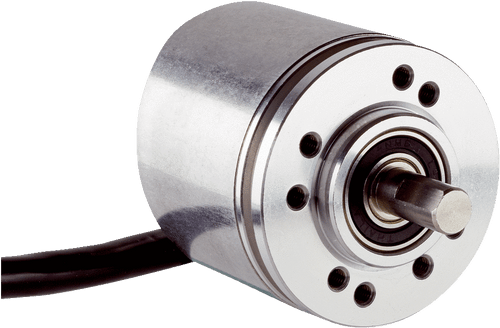

The DBS36 Core incremental encoder features impressively high mechanical flexibility, excellent technical properties, and a number of variations. A blind hollow shaft with a shaft diameter of up to 8 mm and a face mount flange with 6 mm and 1/4" solid shaft are available. The type with face mount flange offers 2 different flanges with 6 different mounting hole patterns and a servo groove for mounting with servo clamps. The hollow shaft type has a universal stator coupling that can be used for multiple typical mounting hole circles. All models have compact dimensions and a universal cable connection that allows for cables to run in an axial or radial direction.
- Universal cable connection
- Types with blind hollow shaft or face mount flange with solid shaft
- Face mount flange with 6 mounting hole patterns and servo groove
- Communication interfaces: TTL/RS-422, HTL/push pull, Open Collector
- Number of lines from 10 to 2,500 possible
- Temperature range: –20 °C ... +85 °C
- Enclosure rating: IP65
Your Benefits:
- The universal cable connection enables the device to be used in tight spaces and provides cable routing flexibility
- Different flanges and the universal stator coupling make it possible to mount the device without changing the application
- Shafts in metric and US type enable worldwide use
- The high flexibility of the mechanical interface of the encoders and the available accessories allow a single type to be used in many applications
- The compact housing diameter saves valuable space
- Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime
Fields of applications:
There are numerous application possibilities for positioning and speed measurement, such as in the textile industry, propulsion technology, storage and conveyor, packaging machines, printing presses, glass industry, and elevatorsOther Information
Product Description:
The DBS36 Core incremental encoder features impressively high mechanical flexibility, excellent technical properties, and a number of variations. A blind hollow shaft with a shaft diameter of up to 8 mm and a face mount flange with 6 mm and 1/4" solid shaft are available. The type with face mount flange offers 2 different flanges with 6 different mounting hole patterns and a servo groove for mounting with servo clamps. The hollow shaft type has a universal stator coupling that can be used for multiple typical mounting hole circles. All models have compact dimensions and a universal cable connection that allows for cables to run in an axial or radial direction.
- Universal cable connection
- Types with blind hollow shaft or face mount flange with solid shaft
- Face mount flange with 6 mounting hole patterns and servo groove
- Communication interfaces: TTL/RS-422, HTL/push pull, Open Collector
- Number of lines from 10 to 2,500 possible
- Temperature range: –20 °C ... +85 °C
- Enclosure rating: IP65
Your Benefits:
- The universal cable connection enables the device to be used in tight spaces and provides cable routing flexibility
- Different flanges and the universal stator coupling make it possible to mount the device without changing the application
- Shafts in metric and US type enable worldwide use
- The high flexibility of the mechanical interface of the encoders and the available accessories allow a single type to be used in many applications
- The compact housing diameter saves valuable space
- Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime
Fields of applications:
There are numerous application possibilities for positioning and speed measurement, such as in the textile industry, propulsion technology, storage and conveyor, packaging machines, printing presses, glass industry, and elevators
