Description

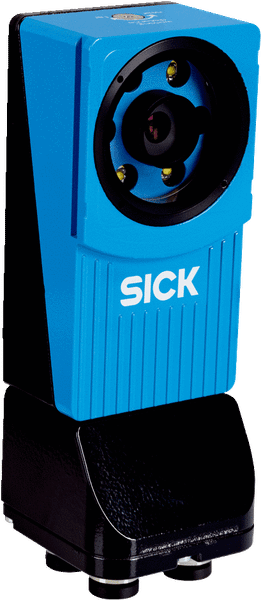

SICK 1056394 VSPP-5F2134 Machine vision.
Features
- Technology: 2D snapshot
- Configurable: ✔
- Toolkit: Object Locator; Pixel Counter; Edge Pixel Counter; Pattern; Blob Finder; Polygon
- Image sensor: CMOS monochrome
- Optical focus: Adjustable focus (manual)
- Calibration: Perspective and lens distortion correction, mm results
- Working range: ≥ 50 mm
- Operating distance with internal illumination: 50 mm ... 200 mm
- Field of view of internal illumination: 22 mm x 15 mm ... 79 mm x 58 mm
- Illumination: Integrated
- Illumination color: White
- LED class: Risk group 1 (low risk, IEC62471 : 2006)
- Spectral range: Approx. 400 nm ... 750 nm
- Offline support: Emulator
- Lens: S-mount
- Optical format: 1/3"
- Focal length: 10 mm
- Task: Detecting - Standard objects; Measuring - Dimension, contour and volume; Measuring - Number; Identifying - OCR; Identifying - Pattern; Determining position - 2D position determination
Mechanics/electronics
- Supply voltage: 24 V DC, ± 20 %
- Ripple: < 5 Vpp
- Current consumption: ≤ < 450 mA; Without output load
- Enclosure rating: IP67 1)
- Housing material: Aluminum
- Window material: PMMA
- Weight (technical data): 445 g
- Dimensions (L x W x H): 100 mm x 53 mm x 38 mm
1) With front window mounted.
Performance
- Sensor resolution: 640 px x 480 px (0.3 MP)
- Scan/frame rate: 40 fps 1)
- Number of inspections: 32
- Reference images: 32 objects
1) Max. 200 fps.
Interfaces
- Ethernet: ✔ , TCP/IP
- Data transmission rate: 100 Mbit/s
- EtherCAT®: ✔ , DC (Distributed Clocks), EoE (Ethernet over EtherCAT®), FoE (Files Access over EtherCAT®), CoE (CAN over EtherCAT®)
- Operator interfaces: Inspector Viewer, web server
- Configuration software: SOPAS ET
- Data storage and retrieval: Log for 30 images, record images on PC, store images to FTP
- Ethernet communication: Dual port, Web API
- Digital input: 4 inputs (24 V)
- Configurable inputs: External trigger, encoder input, External teach, reference object selection
- Digital output: 3 digital outputs, 24 V (B-type)
- Configurable outputs: Output by logical expressions, Additional image storage possibility via FTP
- Output current: ≤ 100 mA
- Standard outputs: No object detected, Everything OK, Detail error
- Maximum encoder frequency: Max. 40 kHz
- External illumination: 5 V TTL
Ambient data
- Shock load: EN 60068-2-27
- Vibration load: IEC 60068-2-6
- Ambient operating temperature: 0 °C ... +45 °C 1)
- Storage temperature: –20 °C ... +70 °C 1)
1) Relative humidity: 35% ... 85%, 95% in storage.
Certificates
- EU declaration of conformity: ✔
- ACMA declaration of conformity: ✔
- China RoHS: ✔
- cULus certificate: ✔
- Information according to Art. 3 of Data Act (Regulation EU 2023/2854): ✔
