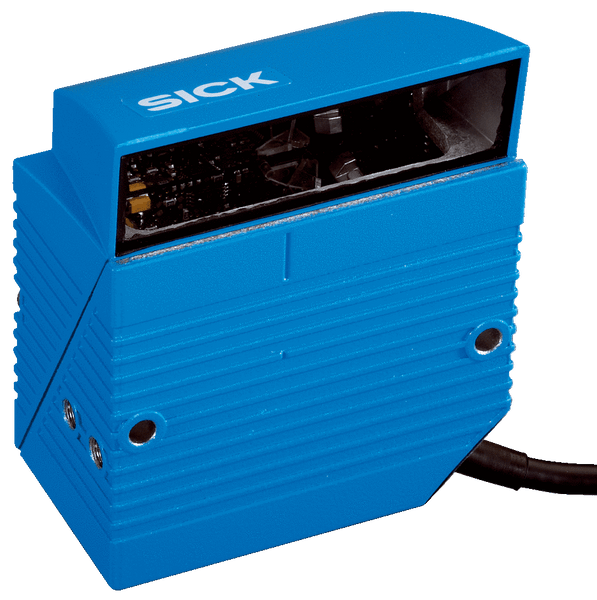

SICK 1041550 CLV620-2000 Fixed mount barcode scanners.
Features
- Version: Mid Range
- Technology: Laser-based code reading
- Connection type: Cable
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Light spot, laser, Visible, Red, 655 nm
- Laser class: 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm ... 345 mm 1)
- Scanning frequency: 400 Hz ... 1,200 Hz
- Code resolution: 0.2 mm ... 1 mm
1) For details see reading field diagram.
Mechanics/electronics
- Connection type: 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC ... 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (DIN 40 050)
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight (technical data): 250 g, without connecting cable
- Dimensions (L x W x H): 80 mm x 66 mm x 38 mm
- MTBF: 100,000 h
- MTTF: 40,000 h (Laser diode) 1)
1) At 25 °C.
Performance
- Readable code structures: 1D codes
- Bar code types: All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Code printing process: Label (printed codes)
- Print ratio: 2:1 ... 3:1
- No. of codes per scan: 1 ... 20 (Standard decoder); 1 ... 6 (SMART620)
- No. of codes per reading interval: 1 ... 50 (auto-discriminating)
- No. of characters per reading interval: 1,500; 500 (for multiplexer function in CAN operation)
- No. of multiple readings: 1 ... 99
Interfaces
- PROFINET: ✔
- Type of fieldbus integration: Optional over external fieldbus module CDF600-2
- Function: PROFINET Single Port, PROFINET Dual Port
- EtherCAT®: ✔
- Type of fieldbus integration: Optional over external fieldbus module CDF600
- Serial: ✔ , RS-232, RS-422, RS-485
- Function: Data interface (read result output), Service interface
- Data transmission rate: 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
- CAN: ✔
- Function: SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
- Data transmission rate: 20 kbit/s ... 1 Mbit/s
- CANopen: ✔
- PROFIBUS DP: ✔
- Digital inputs: 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
- Digital outputs: 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420)
- Reading pulse: Digital inputs, non-powered, serial interface, auto pulse, CAN
- Optical indicators: 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX)
- Acoustic indicators: Beeper/buzzer (can be switched off, can be allocated as a result indication function)
- Configuration software: SOPAS ET
Ambient data
- Electromagnetic compatibility (EMC): EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
- Vibration resistance: EN 60068-2-6 (1995)
- Shock resistance: EN 60068-2-27 (1993)
- Ambient operating temperature: 0 °C ... +40 °C
- Storage temperature: –20 °C ... +70 °C
- Relative humidity: 90 %, Non-condensing
- Ambient light immunity: 2,000 lx, on barcode
- Bar code print contrast (PCS): ≥ 60 %
General notes
- Note on use: For Ethernet connection please use an Ethernet version of CLV6xx
Certificates
- EU declaration of conformity: ✔
- UK declaration of conformity: ✔
- ACMA declaration of conformity: ✔
- China RoHS: ✔
- cULus certificate: ✔
- Ethercat certificate: ✔
- Profinet certificate: ✔
- BIS registration: ✔
- Laser safety (IEC 60825-1) declaration of manufacturer: ✔
- Information according to Art. 3 of Data Act (Regulation EU 2023/2854): ✔
