Description
DESCRIPTION

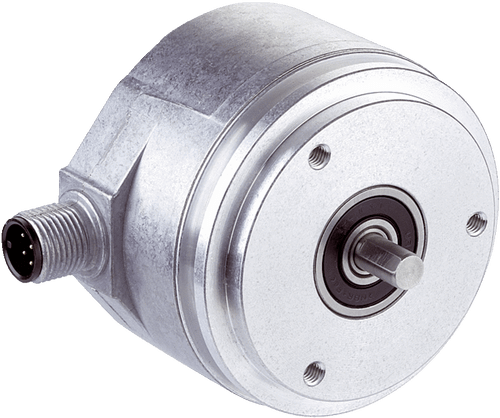

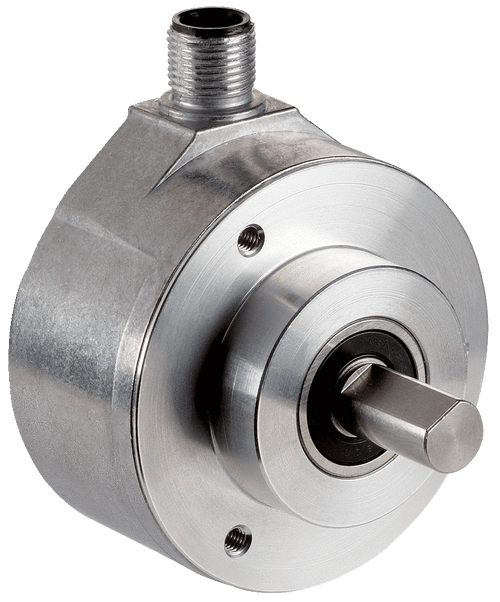

The AFS/AFM60 SSI offers a maximum total resolution of up to 30 bits (AFM60), a large selection of programmable parameters, good concentricity properties, and a compact design. Thanks to the combination of high resolution and high enclosure rating, the encoders are suitable for a wide variety of industrial applications. Variants with a stainless-steel housing are available for applications in harsh environments. The AFS/AFM60 SSI are equipped as standard with an SSI interface, and the AFM60 is also available with combined SSI and incremental as well as SSI and sin/cos interfaces. The encoders can be programmed via the PGT-08-S PC-based programming device or the PGT-10-Pro hand-held programming device.
FEATURES
- High-resolution absolute encoder with up to 30 bits (AFM60) or 18 bits (AFS60)

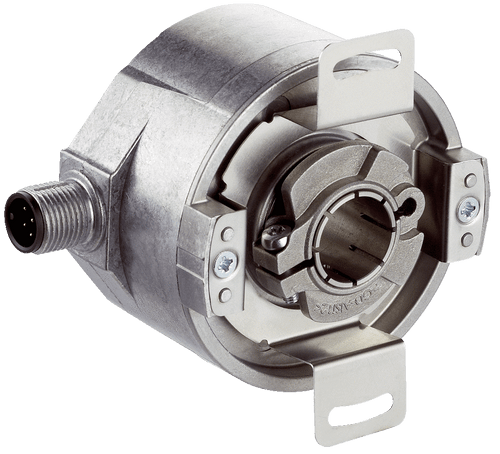

- Various types of solid and hollow shaft
- Connection: M12 male connector, M23 male connector or cable
- Communication interfaces: SSI, SSI + incremental, SSI + Sin/Cos
- Programmable (type-dependent)
- Stainless steel (Inox versions)
- Enclosure rating up to IP67
BENEFITS
- Their high resolution and measurement accuracy enable them to be used in demanding applications
- Application-specific solutions thanks to various mechanical interfaces
- Simple to mount due to compact design, even when space is limited
- Programmability ensures reduced storage, high machine availability, and easy installation
- Suitable programming tools for every application are available as accessories
- High resistance to environmental influences due to stainless-steel housing (Inox versions)
- High impermeability due to enclosure rating up to IP67
