Product Overview
Overview

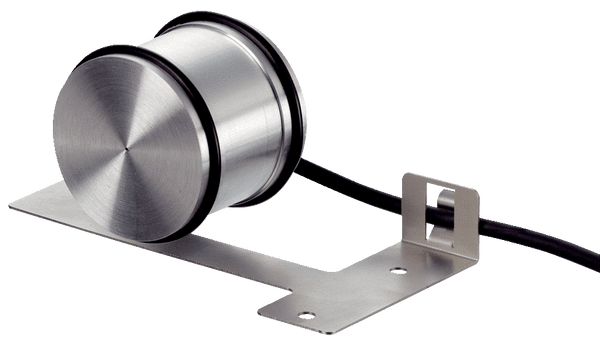

The DKV60 compact measuring wheel encoder is a low-cost solution for determining position and speed directly on conveyor belts or rollers. The DKV60 consists of an incremental encoder, a measuring roller, an installation plate, and a cable guide. It is delivered fully pre-assembled. 2 different measuring wheel surfaces ensure the encoder can adapt to the surface to be measured.
Your Benefits
- Complete system with universal mounting clamps and integrated cable guidance for quick and easy mounting
- Spring steel mounting clamps for a high level of measurement accuracy when deflecting the measuring wheel in X and Y directions
- Low-cost encoder of outstanding quality
- Thanks to a high IP protection class, a non-corrosive mounting bracket, and a rugged encoder, the device is suitable for use in harsh ambient conditions.
- Compact dimensions facilitate straightforward installation even where space is at a premium
- Complete, preassembled measuring system
- Measuring wheel with knurl or O-ring for adaptation to the measuring surface
- Mounting bracket made from anti-corrosive spring steel
- High resolution up to 0.1 mm (1 … 2.000 pulses/revolution)
- Electrical interfaces: Open collector NPN, TTL/RS-422 or HTL/push pull.
- Connection via cable connection, for radial or axial use with open ends or fitted with an M12 connector
Other Information
Overview
The DKV60 compact measuring wheel encoder is a low-cost solution for determining position and speed directly on conveyor belts or rollers. The DKV60 consists of an incremental encoder, a measuring roller, an installation plate, and a cable guide. It is delivered fully pre-assembled. 2 different measuring wheel surfaces ensure the encoder can adapt to the surface to be measured.
Your Benefits
- Complete system with universal mounting clamps and integrated cable guidance for quick and easy mounting
- Spring steel mounting clamps for a high level of measurement accuracy when deflecting the measuring wheel in X and Y directions
- Low-cost encoder of outstanding quality
- Thanks to a high IP protection class, a non-corrosive mounting bracket, and a rugged encoder, the device is suitable for use in harsh ambient conditions.
- Compact dimensions facilitate straightforward installation even where space is at a premium
- Complete, preassembled measuring system
- Measuring wheel with knurl or O-ring for adaptation to the measuring surface
- Mounting bracket made from anti-corrosive spring steel
- High resolution up to 0.1 mm (1 … 2.000 pulses/revolution)
- Electrical interfaces: Open collector NPN, TTL/RS-422 or HTL/push pull.
- Connection via cable connection, for radial or axial use with open ends or fitted with an M12 connector
