Product Description:

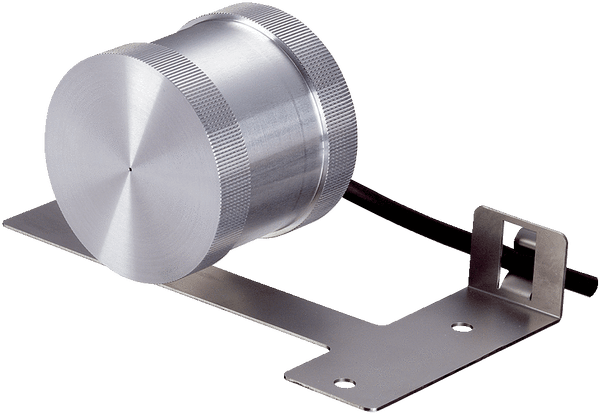

Rugged, high-performance measuring wheel incremental encoder
The DKV60 compact measuring wheel encoder is a low-cost solution for determining position and speed directly on conveyor belts or rollers. The DKV60 consists of an incremental encoder, a measuring roller, an installation plate, and a cable guide. It is delivered fully pre-assembled. 2 different measuring wheel surfaces ensure the encoder can adapt to the surface to be measured.
At a glance:
- Complete, preassembled measuring system
- Measuring wheel with knurl or O-ring for adaptation to the measuring surface
- Mounting bracket made from anti-corrosive spring steel
- High resolution up to 0.1 mm (1 … 2.000 pulses/revolution)
- Electrical interfaces: Open collector NPN, TTL/RS-422 or HTL/push pull.
- Connection via cable connection, for radial or axial use with open ends or fitted with an M12 connector
Fields of applications:
- Measurement of position and speed directly on conveyor belts in wood processing machines, steel and metal processing machines, handling and warehouse systems, sorting systems and conveyor belts, textile machines, printing and paper
Your Benefits:
- Complete system with universal mounting clamps and integrated cable guidance for quick and easy mounting
- Spring steel mounting clamps for a high level of measurement accuracy when deflecting the measuring wheel in X and Y directions
- Low-cost encoder of outstanding quality
- Thanks to a high IP protection class, a non-corrosive mounting bracket, and a rugged encoder, the device is suitable for use in harsh ambient conditions.
- Compact dimensions facilitate straightforward installation even where space is at a premium
