Product Information
Product Description:

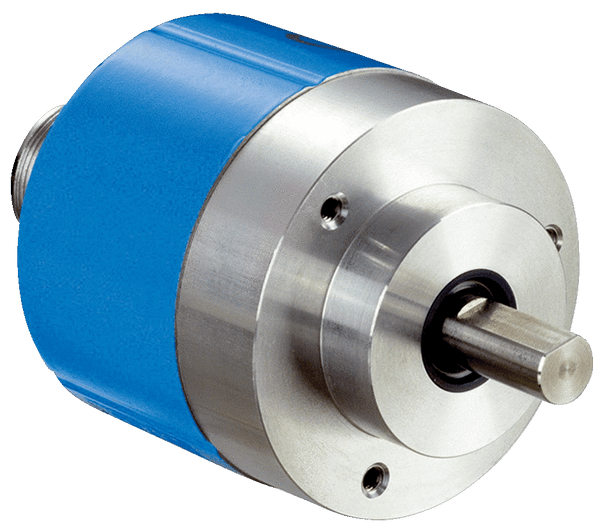

The modular setup of its CoreTech technology enables the compact ARS60 absolute single-turn encoder to provide a customized solution for all applications. All common mechanical variants are available with any number of increments between 2 and 32,768 and are either equipped with an SSI or parallel output, making the ARS60 a universal solution for nearly any application requirements
At a glance
- Absolute single-turn encoder
- Resolution: up to 15 bits (32,768 increments)
- Electrical interface: SSI with gray code type or gray capped
- Electrical interface: Parallel with gray, gray capped, binary, BCD code type
- Zero-set function
- Mechanical interfaces: face mount flange, servo flange, blind and through hollow shaft
- Enclosure rating: Up to IP66
Your Benefits:
- Freely programmable resolution (up to 15 bits)
- Easy zero adjustment directly on the encoder by pressing a button or via sub cable (cable version)
- Suitable for all mounting methods thanks to the individual mechanical interfaces
- A versatile base model thanks to the easily exchangeable collets for the blind hollow shaft and through hollow shaft
- Versions with cable and M23 connector connection in axial and radial designs available
Fields of applications:
- Electronics and solar industries
- Textile machinery
- Packaging industry
- High-bay warehouses
- Woodworking machines
- Machine construction
- Automotive industry
- Material handling
