Product Overview
DESCRIPTION

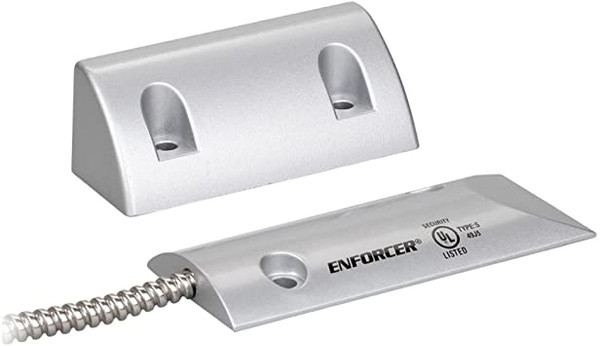

Overhead Door Magnetic Contact, 2-3/4″ (70mm) Gap, Closed loop, UL Listed
FEATURES
- Used for overhead doors in both industrial and residential situations where a wide gap is present
- Adjustable to fit most door-channel widths
- Switch contained in curved low-profile cast-aluminum housing for surface mounting on garage floor
- Magnet enclosed in epoxy compound inside aluminum case for direct installation to garage door with no projecting bracket to break or serve as a handle
- 23/4" (70mm) Gap
- IP68 - Epoxy sealed
- 24" (61cm) wire leads enclosed in armored cable
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- (For NO/NC circuits, use SM-226R-3Q)
- Lifetime limited warranty
RESOURCES
Other Information
Seco-Larm orders require a $300 combined minimum. Orders under $300 can be fulfilled with additional fees. Please contact us about possible orders under this amount.
