Description

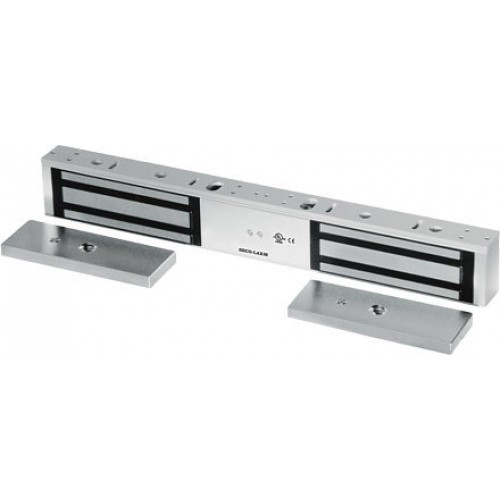

1,200-lb Electromagnetic Lock, Double-door, Bond Sensor, Status LED, UL Listed
The E-941Dx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
FEATURES
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L" bracket and "Z" brackets available for easy mounting
- Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
- Built-in dual-color status LED and bond sensor to show locking status:
- Green: Door is closed and locked
- Red: Door not closed and/or locked
- Off: Door in use / no power
- Bond sensor output: 3A@12VDC
