Product Overview

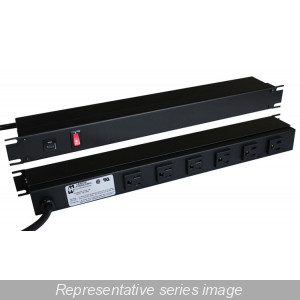

This 14-Outlet Horizontal Power Distribution Units (PDU) is a UL listed surge protected power strip with EMI/RFI protection built-in. It has (6) 120VAC/20A outlets on the front and (8) in the rear, and is constructed with a 6ft power cord with a 3-prong NEMA 5-20 plug, and a safety switch guard to protect inadvertent tripping of the on-off switch. It is ideal for use in both floor enclosures and open frame racks, comes standard with removable vertical mounting brackets and has a black microfinish to match rack and enclosure color.
| Mounting Position | Horizontal |
| Mounting Bracket & Hardware | Included |
| Height (Rack Unit) | 1.75″ (1U) |
| Mounting Width | 19″ |
| AC Rating Volts | 120V |
| AC Rating Amps | 16Amp |
| AC Rating Watts | 1920W |
| AC Rating Frequency | 60Hz |
| Circuit Breaker Switch | 20A |
| Surge Protection (EMI/RFI) | 3 Line |
| Joule Rating | 1050 joules |
| Power/Surge LED Indicator | Red / Green (Surge) |
| Outlets | 14 (6 Front & 8 Rear) |
| Outlet Max. Output | 14Amp |
| Receptacle Type | NEMA 5-20R |
| Power Cable | 12 AWG / 3 SJT |
| Cable Length | 6 ft |
| Plug Type | NEMA 5-20P |
| Housing Material | Cold Rolled Steel |
| Color | Black |
| Certification | UL, RoHS |
