Description

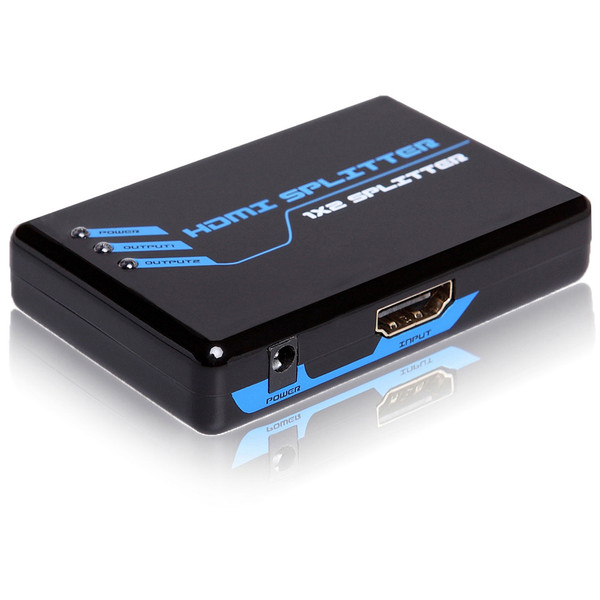

HDMI 4K2K SPLITTER, V2.0 (18GB)
FEATURES
- HDMI 1 X 2 Splitter, and 1 X 4 Splitter
- Large distribution achieved by cascading the HDMI Amplifier Splitter
- Supports 4K@60Hz, 1080p and HDMI 3D
- 6.0Gbps/600MHz per channel bandwidth
- Supports compressed and uncompressed audio
- Supports 12bit per channel (36bit all channels) deep color
- High Dynamic Range Video
SPECIFICATIONS
| Function | 1 X 2 Splitter, 1 X 4 Splitter |
| Output | HDMI |
| Frequency | 50/60Hz |
| Bandwidth | 600MHz/6.0 Gbps per channel bandwidth |
| Interlaced | 480i, 1080i |
| Progressive | 480p, 720p, 1080p, 4K |
| Dimensions (Approx.) | 3″ x 0.75″ x 2″ |
| Weight (Approx.) | 0.1 lbs |
| Input DDC Signal | 5 volts |
| Power Supply | 5V DC @2A |
| Power Consumption | 5W |
| Operating Temperature | 0 to 70 |
| Storage Temperature | -10 to 80 |
| Material | ABS |
| Certifications | FCC, CE, HDMI |
