Product Overview
DESCRIPTION

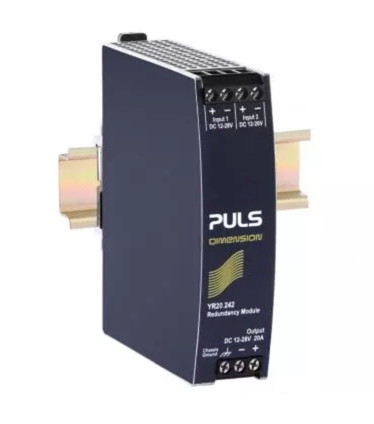

Redundancy Module, 12-28VDC, 20A, Dual Input
FEATURES
- For N+1 and 1+1 redundant systems
- Dual input with single output
- Suitable for all DIMENSION power supplies
except QT20 and QTD20 series - Only 72mV voltage drop at 20A output current
- Only 1.7W loss at 20A and 5.9Wat 40A output current
- 160% (65A) Peak load capability
- Reverse input polarity protection
- Full power between -40°C and +60°C
- Width only 36mm
- Rugged metal housing
- Easy wiring:
Distribution terminal for negative pole included
RESOURCES
Other Information
PULS orders require a $400 combined order minimum. This item is fulfilled by a 3rd Party and is subject to availability and possible order minimums. PULS orders are Non-Cancelable/Non-Returnable.
