Description
DESCRIPTION

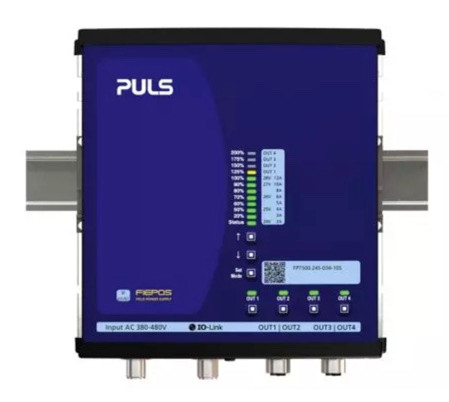

Field PS, 500W, 380-480VAC 3PH, 24-28VDC, 20.8-17.9A (In M12-S, Out (2) M12-L), IO-Link, IP65/67
FEATURES
- IP 65/67 Degree of protection
- 1000Wpeak 5s
- 3AC 380-480V wide-range input
- 4 switchable outputs
- Outputs for actors and sensors separately protected
- 95.6% full load and excellent partial load efficiencies
- DIN rail mounting possible, option “D”
- Output connected to PE (PELV)
- Version without connection to PE on request
- Large output capacitors
- Not potted
- Negligible low input inrush current surge
- Full power up to +45°C
- IO-Link
- Input: M12-S | Output: 2x M12-L
