Description
Accurate temperature control
- Microprocessor temperature controlled
- Temperature calibration function
- Closed circuit sensor design
Certified international safety standard
- Complies with CE and ESD standard, conform to RoHS
- Comes with AWG 20 (0.5mm2) UL Certified Wires
- Silicone handpiece cord wire heat-resistant up to 200°C
- Additional ground contact and power cord socket
High Power, Fast Warm Up & Energy Saving
- Alumina Ceramic Soldering iron heating element features high power, fast warm up
- Individual function starts save energy, or share function by 2 users at the same time
- Adjustable temperature and air flow for easy surface or hole mount components QFP, SOP type IC devices rework
Interchangeable and applicable to most of branded hot air nozzles and tips
- 3 nozzles included with this rework station
- Interchangeable hot air nozzles designed for different types of surface mount components
- Also applicable to most of branded heating element and nozzles
Auto Cool-Off Process to prolong the service lifetime
After power switch is turned off, the auto cool-off process leaves the blower on until the nozzle is cool.

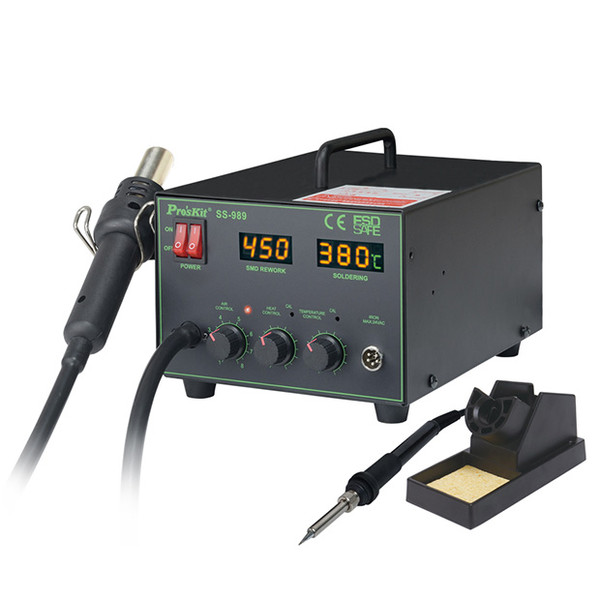

| Specification | SS-989E |
| Power Consumption | 700W |
| Soldering Power | 60W |
| Soldering Iron Temperature Range | 200°C ~ 480°C (392°F ~ 896°F) |
| Hot Air Temperature Range | Room temperature ~ 480°C ( 896°F) |
| Soldering Iron Heating Element | Alumina Ceramic |
| Hot Air Heating Element | Metal Heating Core |
| Pump/Motor Type | Diaphragm Pump |
| Air Capacity | 24L/min (max) |
| Equipment noise | 45dB |
| Temperature Display | LED |
| Power Input | AC 110V~120V 60Hz |
| Dimensions | 10(L)x7.5(W)x5.5(H)in. |
| Weight | 9.25 lbs (w/ hot air gun) |
| Accessories | Hot Air Gun |
| Soldering Iron (AC 24V/60W) 9SS-900N-SI x 1pcs, Soldering Stand x 1pcs, Nozzle 9SS-900-A1 (∅2.2mm) x 1pcs, Nozzle 9SS-900-A2 (∅6.6mm) x 1pcs, Nozzle 9SS-900-A3 (∅8.5mm) x 1pcs |
