DESCRIPTION

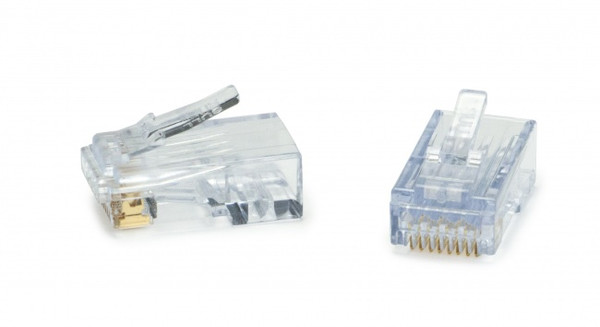

This RJ45 connector is a single connector solution for Cat5e/6/6A cables. Features a unique integrated Hi-Lo stagger load bar that allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.
The ezEX™44 connector is typically used with Cat5e/6 cable and the ezEX™48 with Cat6A.
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Cat5e/Cat6/Cat6A compliant
- Insulation Diameter (Conductor) Size range: - ezEX44 = 0.039" – 0.044" (1.0 –1.12mm) - ezEX48 = 0.043" – 0.048" (1.09 –1.22mm)
- Solid or Stranded 24-22 AWG
- RoHS 2, UL, and FCC compliant
