Product Overview
DESCRIPTION

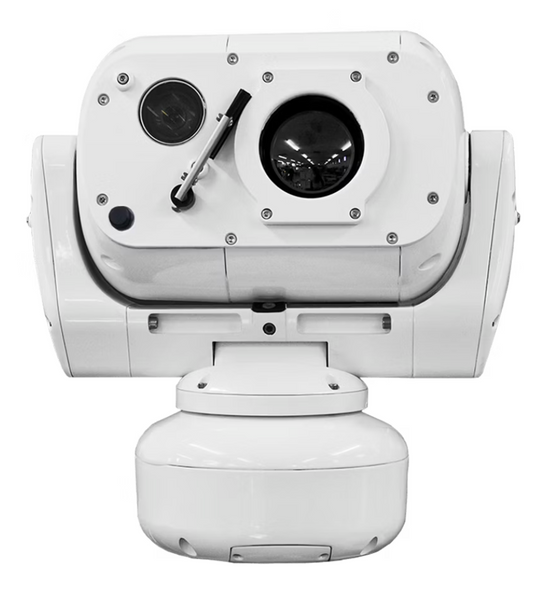

Aeron EVO2 featuring a 640x512, 12µm, 60Hz, LWIR, 55mm F1.0 fixed lens uncooled thermal camera, and a HD, 4.3-129mm (30x) zoom lens visible camera, white colour.
The EVO2 range utilizes the very latest in both thermal sensor and lens technology, providing advanced surveillance capabilities in the most extreme conditions. Available with either zoom or fixed field of view lenses, the Aeron EVO2 range is fitted with a thermal sensor that has a resolution of 640 x 512 (12µm). The Aeron EVO2 is an accurate, rugged, continuous rotation dual sensor PTZ camera utilising an uncooled LWIR thermal sensor with a range of fixed lenses (up to 100mm) and zoom lenses (up to 25-150mm). The camera sensors are housed within the Aeron's rugged enclosure, which also provides fast and accurate camera positioning. Tested to an IP67 level of environmental protection and hard anodised, the Aeron can be used in the most harsh and challenging applications such as maritime, border security and vehicle mount installations.
FEATURES
- Uncooled LWIR thermal sensors:
- Fixed lens options up to 100mm
- Zoom lens options up to 25-150mm
- 30x zoom HD visible sensor with a wiper as standard
- 360° continuous rotation with pan and tilt speeds up to 160° per second
- High level of camera positioning accuracy: 0.01°
- Absolute feedback, virtually zero backlash with automatic self-position correction
- Compact and ruggedised for extreme and marine environments
- IP67 rating
- Mounting options include inverted, upright or inclined
- Suitable for mobile and vehicle mounted applications
