Description
Spiral Wrap

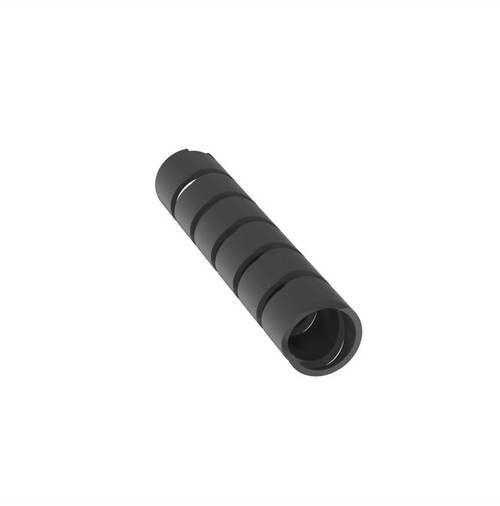

T75FR-TY Spiral Wrap
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
Specifications
- Product Type: Spiral Wrap
- Application: (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
- Color: Natural
- Environment: Indoor
- Material: Polyethylene
- Resistance Properties: Abrasion-Resistant, Flame-Retardant
- Maximum Bundle Diameter (In.): 5
- Maximum Bundle Diameter (mm): 1.5
- Minimum Bundle Diameter (In.): 0.62
- Minimum Bundle Diameter (mm): 15.9
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Minimum Operating Temperature (°C): -20
- Minimum Operating Temperature (°F): -4
- Outer Diameter (In.): 0.75
- Outer Diameter (mm): 19.1
- Overall Length (ft.): 200
- Overall Length (m): 61
- Standards Met: UL Recognized - E141152
- Wall Thickness (In.): 0.06
- Wall Thickness (mm): 1.6
- Part Features: Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable.
Manufacturer Standard Package Quantity: 1
