Panduit PLT3S-C76

$272.99
SKU:
PLT3S-C76
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

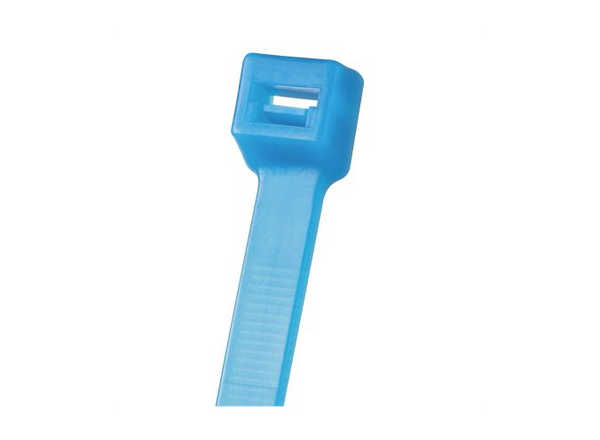

Pan-Ty® ETFE (Tefzel) Chemical, UV & Weather-Resistant Cable Tie

Cable Tie, Aqua, ETFE (Tefzel), 11.6"L (295 mm), 50lb, PK100

Safely organize your bundles with ETFE (Tefzel) chemical and UV/weather-resistant cable Tie. Featuring a one-piece locking wedge design that provides low thread force and high loop tensile strength.

Specifications

  • Material Description: ETFE (Chemical-Resistant, UV-Resistant, Weather-Resistant)
  • Product Type: Premium Cable Tie
  • Color: Aqua
  • Environment: Indoor/Outdoor
  • Material: ETFE
  • Resistance Properties: Chemical-Resistant, UV-Resistant, Weather-Resistant
  • Flammability Rating: UL 94 V-0
  • Overall Length (In.): 11.6
  • Overall Length (mm): 295
  • Body Width (In.): 0.19
  • Body Width (mm): 4.8
  • Body Thickness (In.): 0.059
  • Body Thickness (mm): 1.5
  • Maximum Bundle Diameter (In.): 3
  • Maximum Bundle Diameter (mm): 76
  • Minimum Bundle Diameter (In.): 0.13
  • Minimum Bundle Diameter (mm): 3.3
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50
  • Maximum Operating Temperature (°C): 170
  • Maximum Operating Temperature (°F): 338
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
  • Military Cross Reference Number: MS3367-7-15
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
  • Part Features: One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.

Manufacturer Standard Package Quantity: 100
