Description

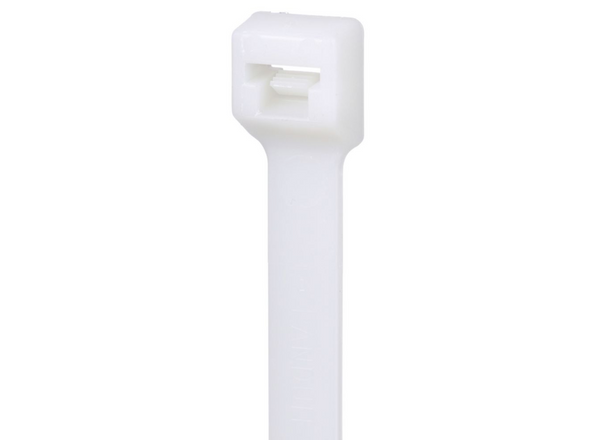

Pan-Ty® Nylon 6.6 Natural Indoor Cable Tie
Cable Tie, Natural, PA6.6, 3.9"L (99 mm), 18lb, PK100
Organize your indoor bundles efficiently with our Nylon 6.6 locking cable Tie. Featuring a one-piece locking wedge for consistent performance, low thread force, and high loop tensile strength.
Specifications
- Material Description: Nylon 6.6
- Product Type: Premium Cable Tie
- Color: Natural
- Environment: Indoor
- Material: Nylon 6.6
- Resistance Properties: None
- Air Handling Space: AH-2 Plenum
- Flammability Rating: UL 94 V-2
- Overall Length (In.): 3.94
- Overall Length (mm): 99
- Body Width (In.): 0.098
- Body Width (mm): 2.5
- Body Thickness (In.): 0.043
- Body Thickness (mm): 1.1
- Maximum Bundle Diameter (In.): 0.87
- Maximum Bundle Diameter (mm): 22
- Minimum Bundle Diameter (In.): 0.06
- Minimum Bundle Diameter (mm): 1.5
- Minimum Loop Tensile Strength (N): 80
- Minimum Loop Tensile Strength (lb): 18
- Maximum Operating Temperature (°C): 85
- Maximum Operating Temperature (°F): 185
- Minimum Operating Temperature (°C): -60
- Minimum Operating Temperature (°F): -76
- Minimum Installation Temperature (°C): -20
- Minimum Installation Temperature (°F): -4
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
- Military Cross Reference Number: MS3367-4-9
- For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
- Part Features: One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
Manufacturer Standard Package Quantity: 100
