Panduit ISTPH6X2MTL

$57.99
SKU:
ISTPH6X2MTL
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

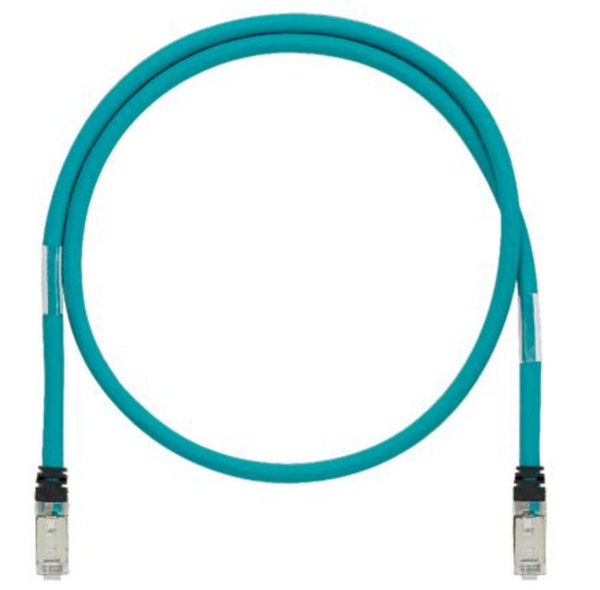

IndustrialNet™ Category 6A Shielded 600 V-Rated Patch Cord

Industrial Cat 6A Shielded 600 V Patch Cord, 2m, TL

Conquer tough industrial environments with our high-performance Cat 6A shielded patch cord, built to withstand extreme conditions and deliver reliable data transfer.

Specifications

  • Product Type: Industrial Copper Patch Cord
  • Sub Brand: IndustrialNet™
  • Application: (1) 10BASE-T (Ethernet)(2) 100BASE-T (Fast Ethernet)(3) 1000BASE-T (Gigabit Ethernet)(4) Industrial Ethernet(5) Ethernet/IP(6) Control Panel deployments featuring power source voltages(7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point(8) High flex applications' Robotic, C-Track
  • Conductor Gauge: 26 AWG
  • Performance Level: Category 6A
  • Conductor Type: Stranded
  • Cable Construction: SF/UTP
  • Shield Type: Shielded
  • Plug Housing Material: Polycarbonate/Cartridge Brass
  • Jacket Material: TPE
  • Environment: Harsh
  • Connector 1 Type: Modular Plug
  • Connector 2 Type: Modular Plug
  • Overall Length (ft.): 6.6
  • Overall Length (m): 2
  • Nominal Cable Outside Diameter (In.): 0.29
  • Nominal Cable Outside Diameter (mm): 7.4
  • Wiring Scheme: RJ45/T568B
  • Maximum Operating Temperature (°C): 60
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°C): 70
  • Maximum Storage Temperature (°F): 158
  • Minimum Storage Temperature (°C): -40
  • Minimum Storage Temperature (°F): -40
  • Boot Color: Black
  • Color: Teal
  • Flammability Rating: CM
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea standards; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7 UL-rated: UL 1863 approved; Meets IEEE 802.3af and IEEE 802.3at for PoE+ applications; UL AWM Style 2463 (80°C 600V) Flex Life Test; RoHS Compliant
  • IP Rating: IP20
  • IEC Variant: 60603-7
  • PoE Compatibility: PoE+
  • Plug Type: 8 Position

Manufacturer Standard Package Quantity: 1
