DESCRIPTION

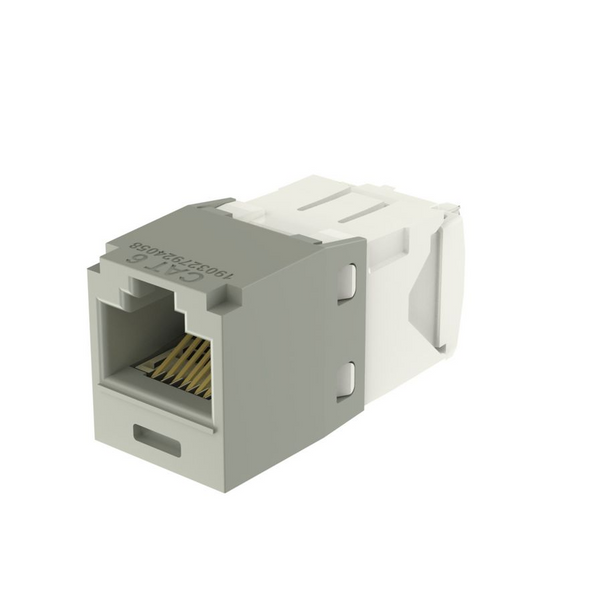

Category 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 22 – 26 AWG, 100 ohm unshielded twisted pair cable and shall not require a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
FEATURES
- Confidence that each jack module will deliver the critical electrical performance requirements
- Optimizes performance by eliminating conductor untwist and reduces installation time and expense
- UTP jack modules snap in and out of all Mini-Com Faceplates, Modular Patch Panels and Surface Mount Boxes for easy moves, adds, and changes
- Marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible
- Can be clearly identified with optional labels and icons for port identification
- Angled wire caps allow cable to be terminated at an angle (up, down, left or right) to the jack module; ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT-1 termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability; TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
- Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
