Product Overview
DESCRIPTION

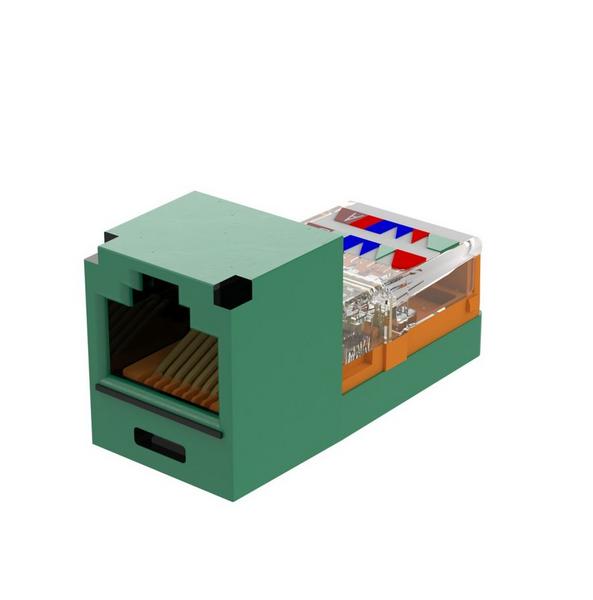

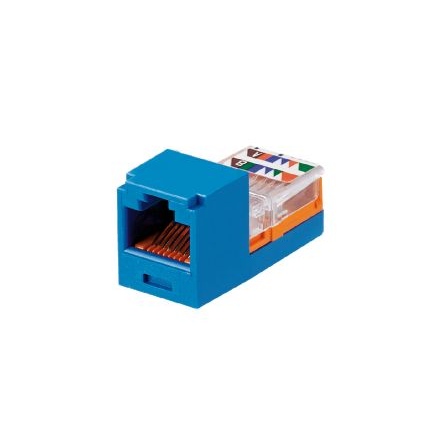

Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 – 22 AWG, 100 ohm unshielded twisted pair cable and shall not require a punchdown tool. UTP jack modules shall use a downward forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The module base sled shall be color coded orange to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
FEATURES
- Enables easy troubleshooting and eases conductor alignment during termination
- UTP jack modules snap in and out of all Mini-Com Faceplates, Modular Patch Panels and Surface Mount Boxes for easy moves, adds and changes
- Controls cable bend radius for long term installed performance
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords
- Can be clearly identified with optional labels and icons for port identification
- CJT-X termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
- Provides a simple and secure method to control access to data ports while not in use
