Description

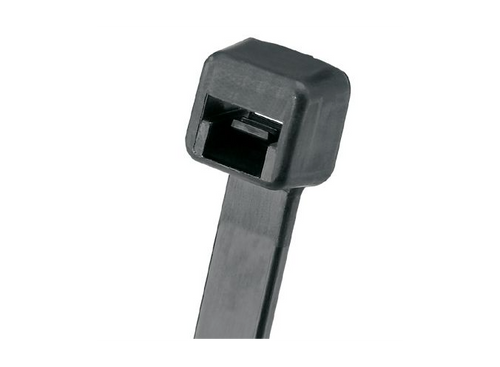

Dome-Top® Nylon 6.6 Barbed, Weather-Resistant Cable Tie
Cable Tie, Black UV PA6.6, 11.3"L (287mm), 40lb, PK1000
Secure your bundles reliably with our Dome-Top® UV and weather-resistant cable ties. Featuring a patented two-piece built-in barbed design for high performance, adjustability and reliability.
Specifications
- Material Description: Nylon 6.6 (UV-Resistant, Weather-Resistant)
- Product Type: Cable Tie
- Sub Brand: Dome-Top®
- Color: Black
- Environment: Indoor/Outdoor
- Material: Nylon 6.6
- Resistance Properties: UV-Resistant, Weather-Resistant
- Air Handling Space: AH-2 Plenum
- Flammability Rating: UL 94 V-2
- Overall Length (In.): 11.3
- Overall Length (mm): 287
- Body Width (In.): 0.142
- Body Width (mm): 3.6
- Body Thickness (In.): 0.049
- Body Thickness (mm): 1.2
- Maximum Bundle Diameter (In.): 3
- Maximum Bundle Diameter (mm): 76
- Minimum Bundle Diameter (In.): 0.03
- Minimum Bundle Diameter (mm): 0.8
- Minimum Loop Tensile Strength (N): 178
- Minimum Loop Tensile Strength (lb): 40
- Maximum Operating Temperature (°C): 85
- Maximum Operating Temperature (°F): 185
- Minimum Operating Temperature (°C): -60
- Minimum Operating Temperature (°F): -76
- Minimum Installation Temperature (°C): -20
- Minimum Installation Temperature (°F): -4
- Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
- For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
Manufacturer Standard Package Quantity: 1000
