Panduit BT1M-M39

$80.99
SKU:
BT1M-M39
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

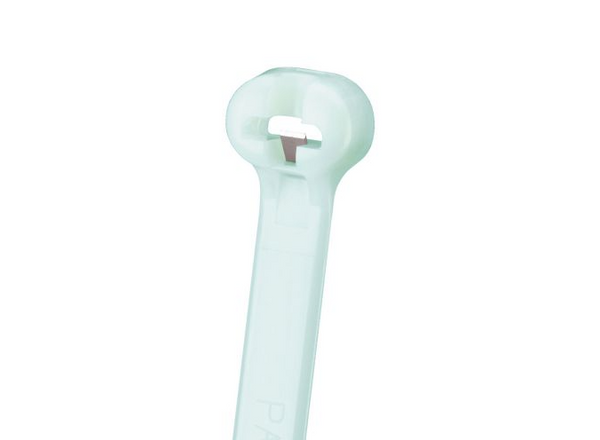

Dome-Top® Nylon 6.6 Barbed, Heat-Stabilized Indoor Cable Tie

Cable Tie, Natural High Heat PA6.6, 4.0"L (102mm), 18lb, PK1000

Secure your bundles reliably with our Dome-Top® heat-resistant locking cable ties. Featuring a patented two-piece built-in barbed design for high performance and adjustability.

Specifications

  • Material Description: Nylon 6.6 (Heat-Resistant)
  • Product Type: Cable Tie
  • Sub Brand: Dome-Top®
  • Color: Natural
  • Environment: Indoor
  • Material: Nylon 6.6
  • Resistance Properties: Heat-Resistant
  • Flammability Rating: UL 94 V-2
  • Overall Length (In.): 4
  • Overall Length (mm): 102
  • Body Width (In.): 0.095
  • Body Width (mm): 2.4
  • Body Thickness (In.): 0.036
  • Body Thickness (mm): 0.9
  • Maximum Bundle Diameter (In.): 0.9
  • Maximum Bundle Diameter (mm): 23
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Loop Tensile Strength (lb): 18
  • Maximum Operating Temperature (°C): 115
  • Maximum Operating Temperature (°F): 239
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
  • Military Cross Reference Number: MS3367-4-12
  • For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
  • Application: High Temperature

Manufacturer Standard Package Quantity: 1000
