Description

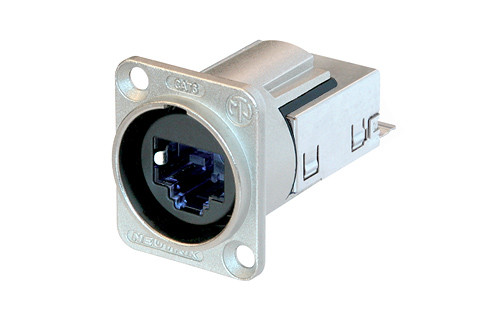

The etherCON CAT6 D-shape panel connectors with metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.
Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors.
Not compatible with the etherCON cable connector carriers NE8MC* and the CAT6A cable connectors NE8MX6*.
Features & Benefits
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- Shielded system - high noise immunity and EMI protection
- Ground lead jumper on panel connector with selectable grounding option
- CAT6 performance - fast data transmission and high bandwidth applications
- IP65 - Dust and waterproof in mated condition
- Push Pull mating - secure and proven locking system
- Gas-tight IDC termination without tool
