Product Overview

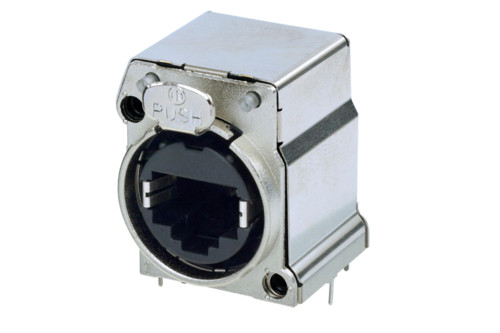

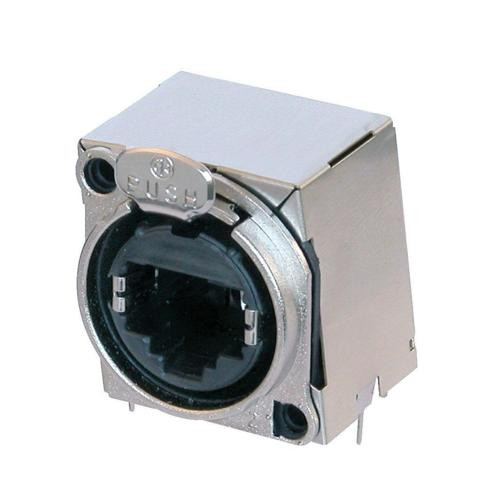

Fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm. The "Shielded etherCON" offers a closed metal housing to avoid EMI or cross talking.The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.The B-Series offers a space saving design and a rugged metal front plate.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features & Benefits
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Comprehensive shielding granted by completely closed metal housing
- Connector is fixed onto PCB due to soldered connector housing
- Ground panel connection
- Approved latch lock system
- Improves EMC performance of appliance even in unmated condition
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
