Description

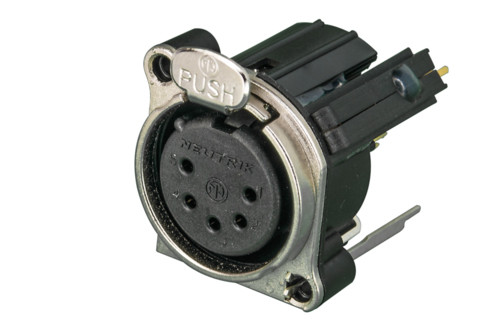

5 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.
Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.
Features & Benefits
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Fitted with changeover switch
- Switch activated by inserting the cable connector
- Fork type female contact
- Normally open, normally closed (NO - NC) contact
