Description
DESCRIPTION

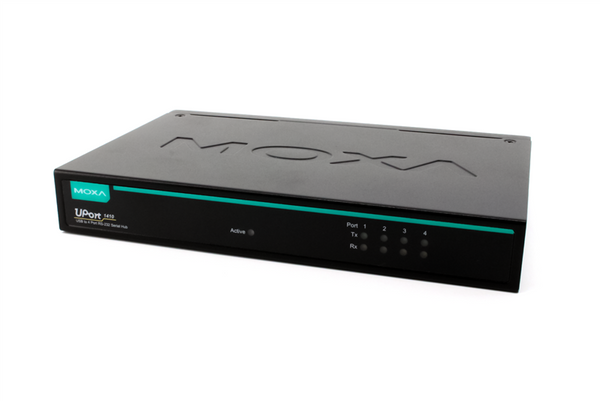

4 Port USB-to-Serial Hub, RS-232
The UPort™ 1410 USB-to-serial converters allow you to connect 4 RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort™ 1410 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications.
USB plug & play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports,saving on setup time and cost.
Moxa’s 20-plus years of experience in serial board design is now built into a new top performance CPU called MOXA ART. This chip equips the UPort™ 1410 converters with USB 2.0 (Hi-Speed 480 Mbps), a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode, making Moxa’s UPort™ converters perform far better than the competition.
Note: A power adaptor is available for the UPORT1410 if the USB port does not provide enough power. You must purchase the adaptor plus one power cord. (Part # PWR-12120-DT-S2)
FEATURES
- Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
- 921.6 Kbps maximum baudrate for super fast data transmission
- 15N high retention USB type B connector
- 128-byte FIFO and on-chip H/W, S/W flow control
- Built-in 15 KV ESD protection for all serial ports
- 2 KV optical isolation protection (UPort 1450I only)
- IP30-rated, rugged metal housing
- COM port assignments maintained across different PCs
- Drivers provided for Windows, WinCE, and Linux
- Choose bus power or external power (UPort 1410/1450 only)
- Locking power jack
