Description

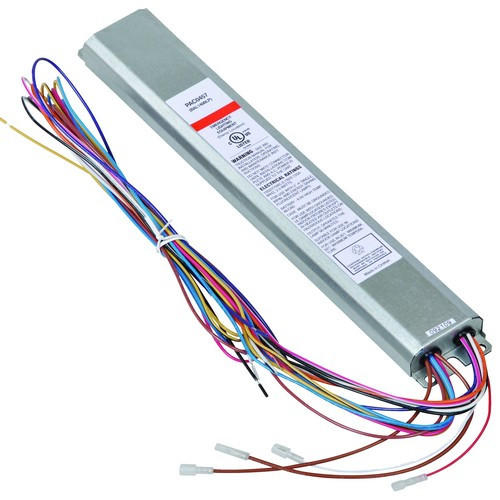

Low Profile Fluorescent Emergency Lighting Ballasts 500 Lumens T5-T8 - Fluorescent Emergency Lighting Ballasts for Power Failures.
Low Profile Fluorescent Emergency Lighting Ballasts 500 Lumens T5-T8 features include:
- Fluorescent Emergency Ballast allows the same fixture to be used for both normal and emergency lighting
- In the event of a Power Failure, the Ballast Switches to the Emergency Mode and operates one or two of the existing lamps for a minimum of 90 minutes
- The unit contains a Ni-Cad Battery, Charger, and Inverter Circuit in a single package. The ballast can be mounted in the wireway or on top of the fixture, and is UL listed for factory installation or retrofit applications
- Low profile ballasts have Time Delay Feature for end of life circuitry to prevent AC Ballast from shutting down when transitioning from Emergency Mode back to AC Mode
- Low Profile ballasts have open circuit insulation feature to protect unit when load is absent Low Profile ballasts are rated for use with T5 & T8 single or bi-pin 1 or 2 lamp, 18-50W 4-Pin Long Compact Rapid Start, 32W 4-Pin Compact, 24-32W U-Bend FBT8 lamps from Phillips, GE, Osram or equal
- Low profile ballasts are compatible with Instant Start & Rapid Start Ballasts
- 90 minute minimum emergency power, 24 hour recharge time
- Temperature Range: 68°F to 122°F(20°C to 50°C)
- 120/277 Volt
- 60 Hz
- Damp Location Listed
- UL Listed
- 5 Year Warranty
- Order Qty of 1 = 1 Piece
