Product Overview
GENERAL INFO
Finish: Black Brushed and Anodized
UL Standards Tested: 1678
TECHNICAL INFORMATION
Static Load Capacity: 50
UL Load Capacity: 50
Material: Steel
DIMENSIONS
Capacity Weight (US): 50
Depth (US): 15.56
Height (US): 14
Width (US): 19
Rack Units: 8

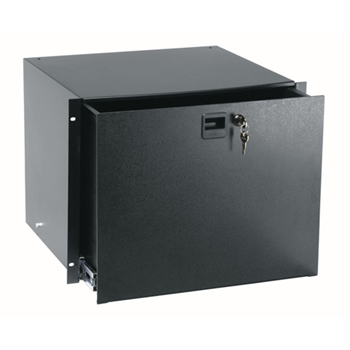

EIA compliant 19” rackmount drawer shall be Middle Atlantic Products model # TD8FLK. Drawer shall have an overall height of 14”, and useable depth of 14-1/2”. Drawer base shall be 20-gauge steel, top and sides shall be 16-gauge steel. Drawer faceplate shall be .090” thick aluminum with a black textured powder coat finish. Drawer shall use full extension, ball bearing slides. Grommet shall be provided for safely passing cables through the cable entry point at the rear of the drawer on 2, 3 and 4 space models. 2, 3 and 4 space drawers shall include a no-slip drawer mat. Drawer shall have a 50 lb. weight capacity. Drawer shall be warrantied to be free from defects in materials or workmanship under normal use and conditions for a period of three years. Drawer shall be UL Listed in the US and Canada. Drawer shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Drawer shall be RoHS EU Directive 2002/95/EC compliant. Drawer shall be manufactured by an ISO 9001 and ISO 14001 registered company.
FEATURES & BENEFITS
Fully enclosed top with inside dimensions measuring 15-7/8” wide by 14-1/2” deep, the TD Series drawers feature spring-loaded latches and rugged, straight-forward construction. Installed keylock option available. 2, 3 and 4 space models include drawer mat and rear cable grommet at no extra charge!
- Fully enclosed top
- Rugged steel construction with spring-loaded latch
- Black textured finish
GENERAL INFO
Finish: Black Brushed and Anodized
UL Standards Tested: 1678
TECHNICAL INFORMATION
Static Load Capacity: 50
UL Load Capacity: 50
Material: Steel
DIMENSIONS
Capacity Weight (US): 50
Depth (US): 15.56
Height (US): 14
Width (US): 19
Rack Units: 8
EIA compliant 19” rackmount drawer shall be Middle Atlantic Products model # TD8FLK. Drawer shall have an overall height of 14”, and useable depth of 14-1/2”. Drawer base shall be 20-gauge steel, top and sides shall be 16-gauge steel. Drawer faceplate shall be .090” thick aluminum with a black textured powder coat finish. Drawer shall use full extension, ball bearing slides. Grommet shall be provided for safely passing cables through the cable entry point at the rear of the drawer on 2, 3 and 4 space models. 2, 3 and 4 space drawers shall include a no-slip drawer mat. Drawer shall have a 50 lb. weight capacity. Drawer shall be warrantied to be free from defects in materials or workmanship under normal use and conditions for a period of three years. Drawer shall be UL Listed in the US and Canada. Drawer shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Drawer shall be RoHS EU Directive 2002/95/EC compliant. Drawer shall be manufactured by an ISO 9001 and ISO 14001 registered company.
FEATURES & BENEFITS
Fully enclosed top with inside dimensions measuring 15-7/8” wide by 14-1/2” deep, the TD Series drawers feature spring-loaded latches and rugged, straight-forward construction. Installed keylock option available. 2, 3 and 4 space models include drawer mat and rear cable grommet at no extra charge!
- Fully enclosed top
- Rugged steel construction with spring-loaded latch
- Black textured finish
