Product Overview
GENERAL INFO
Finish: Black
UL Standards Tested: 1678
TECHNICAL INFORMATION
Static Load Capacity: 50
UL Load Capacity: 50
Material: Steel
DIMENSIONS
Mounting Depth Max: 16.375, 26.75, 29.125
Mounting Depth Min: 12.5, 23, 27.375
Capacity Weight (US): 75
Depth (US): 23
Height (US): 8.71
Width (US): 19
Rack Units: 4

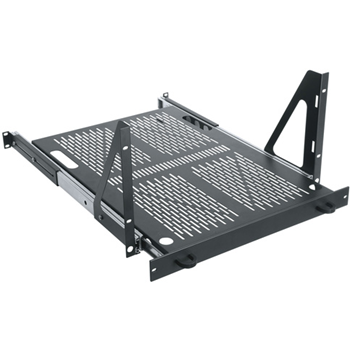

19” Rackmount Heavy Duty Sliding Shelf shall be Middle Atlantic Products model # SS4-23VTR. SS-VTR Sliding Shelf shall offer an extension of 23.5”. SS-VTR Sliding Shelf shall offer a useable mounting area of 15.9” W x 23”D. SS-VTR Sliding Shelf shall have 4 foot holes for securing VTRs and other heavy components. SS-VTR Sliding Shelf shall be 4 spaces, and accept removable cover, model # SS-VTR-CVR4. SS-VTR Sliding Shelf shall be 4 point mount and accommodate front to rear rackrail mounting range of 12.5” to 29”. SS-VTR Sliding Shelf shall be vented. SS-VTR Sliding Shelf shall have a 75 lb. weight capacity. SS-VTR Sliding Shelf shall be finished in a durable black powder coat. SS-VTR Sliding Shelf shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. SS-VTR Sliding Shelf shall comply with the requirements of be RoHS EU Directive 2002/95/EC. SS-VTR Sliding Shelf shall be manufactured by an ISO 9001 and ISO 14001 registered company. SS-VTR Sliding Shelf shall be warranted to be free from defects in material or workmanship under normal use and conditions for a period of 3 years the lifetime of the product.
FEATURES & BENEFITS
• Comes with mounting ears pre-assembled for quick installation • Full extension lockout shelf allows for easy maintenance of your components right on the shelf • Allows access to cable, wiring and connections from the front of the enclosure • Optional lightweight removable cover panel • 3 front-to-rear rail mounting ranges: – 12-1/2” to 16-3/8” – 23” to 26-3/4” – 27-3/8” to 29-1/8” • 23-1/8” overall depth and 23” useable depth with foot holes • Durable steel construction with black finish
- Heavy-duty, full extension lockout shelf for easy maintenance
- Comes with pre-assembled mounting ears to save time
- Three mounting depth ranges from 12-1/2” to 29-1/8”
- High 75 lb load capacity at full extension
- Optional lightweight removable cover panel
