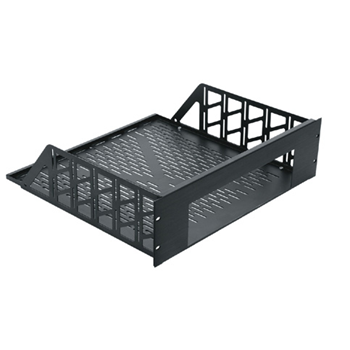

Name: Middle Atlantic RSH4A11XX 11 RU, 20.5" D Anodized Custom Shelf
Brand: Middle Atlantic Products
SKU: RSH4A11XX
Price: 240.3 USD
Availability: InStock

Product Overview

GENERAL INFO

Color: Black

Finish: Anodized

TECHNICAL INFORMATION

Material: Steel

DIMENSIONS

Panel Width: 19

Depth (US): 20.56

Height (US): 19.25

Width (US): 19

Rack Units: 11

EIA compliant 19” custom rackmount shall be Middle Atlantic Products model # RSH4A custom fit to accommodate the component installed in RSH (A - black brushed and anodized). RSH series custom rackshelf shall be constructed of the following materials: vented bottoms and side panels (ears) shall be 16-gauge steel with a durable flat black powder coat finish, faceplate shall be .063" thick aluminum. Custom rackshelf shall be UL Listed in the US and Canada. Clamp kit for RSH series custom rackshelf shall be Middle Atlantic Products part # -C. Clamp kit shall be constructed of 16-gauge steel and finished in a durable black powder coat. Custom rackshelf shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Custom rackshelf shall be RoHS EU Directive 2002/95/EC compliant. Custom rackshelf shall be manufactured by an ISO 9001 and ISO 14001 registered company. Custom rackshelf shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

FEATURES & BENEFITS

With the innovative RSH custom rackmounts, virtually any component can be installed in a standard 19” enclosure without modification. Custom cut to provide a perfect opening for the face of the component that is being mounted, each RSH unit provides a neatly-trimmed installation with a perfect fit and no gaps. With accurate details on over 9,500 components in our measured unit database, chances are we have the component needed on file. Unit assembles easily in minutes and includes rear brackets to prevent the mounted component from sliding back. Fully ventilated ears and bottom promote cooling. Depending on the needs of the installation, the units can be ordered with a black textured finish (model RSH4S) or a black brushed and anodized finish (model RSH4A). Bottom depths are automatically provided in 11-1/2”, 14”, 15-1/2”, 17-1/2”, or 20-1/2” styles. Custom rackmounts will accept any component up to 17-3/4” wide. Individual custom faces (less rack ears and shelf bottom) are also available in a black textured finish (model SFACE) or a black brushed and anodized finish (model AFACE). LCD rackmounts also available to mount most LCD monitors with up to a 17” screen size or with a maximum width of 17-3/8”. NOTE: custom rackshelf height is specified at the factory based on physical restrictions. Visit middleatlantic.com to find heights on all measured components, or design the system in RackTools® or Visio® Blocks, which are both updated regularly with the latest components.
