Product Overview
GENERAL INFO
Number Of Ports: 1
UL Standards Tested: UL 60950-1
TECHNICAL INFORMATION
Material: Metal
DIMENSIONS
Mounting Depth Max: 27.75
Mounting Depth Min: 21.63
Usable Depth: 29.23
Max Screen Size: 17.3
Depth (US): 25.23
Height (US): 1.73
Width (US): 18.9
Rack Units: 1

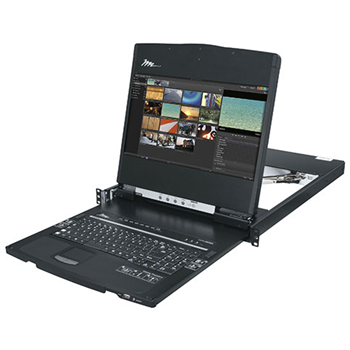

EIA compliant 19” rackmount LCD monitor, keyboard with integrated touchpad shall be Middle Atlantic Products part # RM-KB-LCD17HD and shall occupy 1 rackspace (refer to chart). Overall dimensions shall be 1.75” H x 19” W x 25.23” D. RM-KB-LCD17HD shall have a rail to rail mounting range of 21.63” to 27.75” and require a minimum usable depth of 29.23”. Keyboard shall have a standard 105 key USB keyboard with integrated touchpad. LCD display size shall be 17.3”
diagonal with a native screen resolution of 1920 x 1080 and an aspect ratio of 16 x 9. Power source shall be 50/60 Hz, 120 - 240V AC with a power consumption of 19.4 watts. Included power cord shall be provided with a NEMA 5-15P plug. Keyboard with LCD display shall have an operating range of 32°F - 104°F. RM-KB-LCD17KVMHD shall include KVM switch with 8 ports. Keyboard with LCD display shall comply with FCC Part 15, IC ICES-003 and EU EMC Directive 2004/108/EC and 2014/30/EU Class A. Keyboard shall have a black finish. Rackmount LCD monitor and keyboard with integrated touchpad shall be RoHS EU Directive 2002/95/EC and 2011/65/EU compliant. Rackmount LCD and Keyboard shall be ETL Listed to UL 60950 in the US and Canada. Rackmount LCD and Keyboard shall be compliant with the EU Low voltage Directive. Rackmount LCD and keyboard shall meet EU EMC directive and the US and Canadian EMC regulations governed by the FCC and IC. Rackmount LCD monitor and keyboard with integrated touchpad shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rackmount LCD monitor and keyboard with integrated touchpad shall be warrantied to be free from defects in parts or materials under normal use and conditions for a period of 1 year.
diagonal with a native screen resolution of 1920 x 1080 and an aspect ratio of 16 x 9. Power source shall be 50/60 Hz, 120 - 240V AC with a power consumption of 19.4 watts. Included power cord shall be provided with a NEMA 5-15P plug. Keyboard with LCD display shall have an operating range of 32°F - 104°F. RM-KB-LCD17KVMHD shall include KVM switch with 8 ports. Keyboard with LCD display shall comply with FCC Part 15, IC ICES-003 and EU EMC Directive 2004/108/EC and 2014/30/EU Class A. Keyboard shall have a black finish. Rackmount LCD monitor and keyboard with integrated touchpad shall be RoHS EU Directive 2002/95/EC and 2011/65/EU compliant. Rackmount LCD and Keyboard shall be ETL Listed to UL 60950 in the US and Canada. Rackmount LCD and Keyboard shall be compliant with the EU Low voltage Directive. Rackmount LCD and keyboard shall meet EU EMC directive and the US and Canadian EMC regulations governed by the FCC and IC. Rackmount LCD monitor and keyboard with integrated touchpad shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rackmount LCD monitor and keyboard with integrated touchpad shall be warrantied to be free from defects in parts or materials under normal use and conditions for a period of 1 year.
FEATURES & BENEFITS
High definition rackmount consoles are designed for the needs of the AV system, with a 100% digital platform that maintains complete digital signal integrity. This results in data that remains intact between source and display with no compatibility issues and no need for specialty cabling or accessories. Supporting a broad range of applications, rackmount consoles are ideal whenever rackmount control and system monitoring is required.
- High definition (1080p), widescreen (16:9) display
- Designed for digital video, featuring an HDMI certified 100% digital platform including HDMI/DVI inputs and HDCP compliance
- No special cables required – compatible with industry standard cables and extenders
- Models available in standard console configuration for single systems or console with 8 Port KVM for managing multiple systems from a single station
- Compact, 1-rackspace design includes 17” widescreen display, keyboard and touchpad
- Dual rail design allows monitor to reside in open position for system monitoring while keyboard is recessed
- Fast one-person installation with quick-install rails
