Product Overview
DESCRIPTION

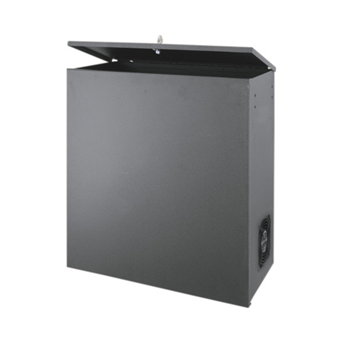

EIA compliant 19” DVR lockbox shall be Middle Atlantic Products model # DLBX. Overall dimensions shall be 23.87” W x 11.34” H x 28.24” D. Lockbox shall be constructed of fully welded 16-gauge steel. Mechanically interlocking top provides added security and removes easily for equipment servicing. Shall come with 2 - 4-1/2” fans, for effective thermal management. Rack shall have 1/2”, 3/4” 1” and 1-1/2” electrical knockouts and 2” x 4” laser knockouts for cable pass through on back, bottom, and sides. Comes equipped with factory installed keylocked vented hinging front door for easy equipment access. DLBX shall be GREENGUARD Gold Certified. DLBX shall be manufactured by an ISO 9001 and ISO 14001 registered company. Lockbox shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the lockbox. Fans shall be warrantied to be free from defects in material or workmanship under normal use and conditions for a period of 3 years.
FEATURES
- 28 1/4 D X 11 3/9 H
- Optimized for thermal management of DVRs and other digital equipment

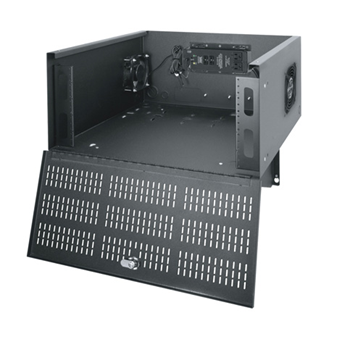

- Wall mounts vertically or horizontally, can also be used as a monitoring shelf
- Extensive cable management tie points, EKOs and cable pass-throughs
- Interlocking top for added security; top removes easily for servicing
- Standard keylocked vented hinging front door
- Includes two fans
- Optional proportional speed thermostatic fan control

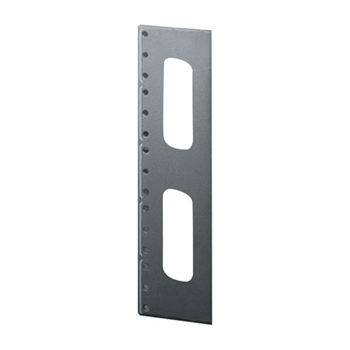

- Optional 5RU Rackrail ki
